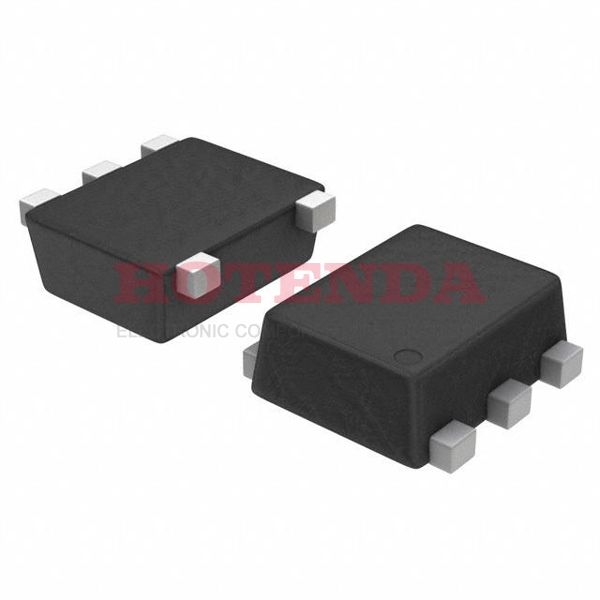

NL17SGU04P5T5G Overview
The part is convenient to ship overseas because it is packed in a SOT-953. The advanced packaging method Tape & Reel (TR) provides high reliability. A Inverter logic principle governs its operation. Voltage 0.9V~3.6V is needed to ensure the part's full functionality. Operational temperature extended around -55°C~125°C. Mounted in Surface Mount. Output current is 8mA 8mA in the high and low states. MiniGate™ is the series it belongs to. The total number of terminations is 5. There are 1 functions that significantly improve the user experience. A total of 5 pins are injected into the body of the part. Logic devices with Surface Mount mounting are widely used in many applications. Datasheets for functions of 5 pins are available. Quiescent parts have 500nA current flowing through them. The device consists of 1 circuits. There is 30pF load capacitance on the part. To supply the device, it requires a voltage of 0.9V. Vsup reaches its maximum value at 3.6V. The method TAPE AND REEL is packed into it.
NL17SGU04P5T5G Features
Inverter Logic Type
Operating Temperature: -55°C~125°C
Quiescent Current: 500nA
NL17SGU04P5T5G Applications
There are a lot of ON Semiconductor
NL17SGU04P5T5G Gates and Inverters applications.
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
