Name: FSCQ1265RTYDTU
Brand: ON Semiconductor
SKU: FSCQ1265RTYDTU
Availability: InStock

new-10%

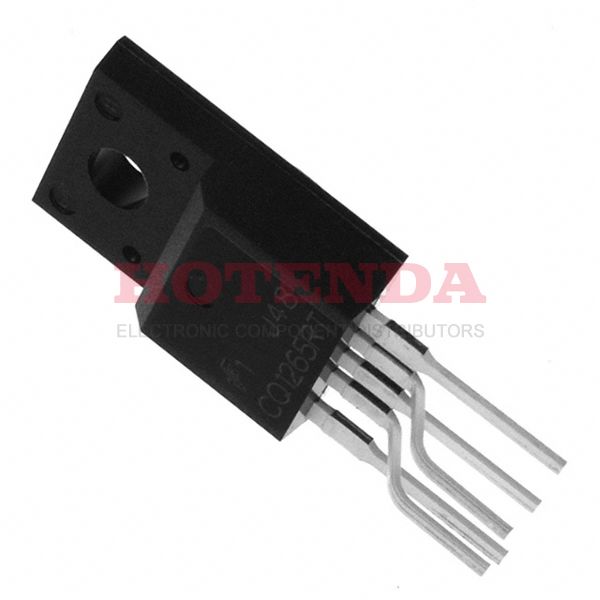

FSCQ1265RTYDTU

Manufacturer part number:FSCQ1265RTYDTU

Manufacturer:ON Semiconductor

Description:5 Terminations9V~20V 5 Pin FSCQ1265 AC to DC power converterFSCQ Series 1 Outputs

Case Package:SOT-23

Datasheet:FSCQ1265RTYDTU Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	31 Weeks
Lifecycle Status	ACTIVE (Last Updated: 2 days ago)
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-220-5 Full Pack (Formed Leads)
Number of Pins	5
Weight	2.894g
Operating Temperature	-25°C~85°C TA
Packaging	Tube
Published	2016
Series	FSCQ
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
Termination	Through Hole
ECCN Code	EAR99
Resistance	750mOhm
Terminal Finish	Tin (Sn)
Power (Watts)	170W
Additional Feature	RESONANT CONTROL TECHNIQUE ALSO AVAILABLE
Subcategory	Switching Regulator or Controllers
Power Rating	140W
Max Power Dissipation	170W
Terminal Position	ZIG-ZAG
Number of Functions	1
Current Rating	7A
Frequency	20kHz
Base Part Number	FSCQ1265
Number of Outputs	1
Output Voltage	650V
Max Output Current	12A
Input Voltage-Nom	18V
Analog IC - Other Type	SWITCHING CONTROLLER
Nominal Supply Current	6mA
Power Dissipation	50W
Output Current	6.16A
Voltage - Supply (Vcc/Vdd)	9V~20V
Max Supply Current	6mA
Quiescent Current	6mA
Control Features	Sync
Max Output Voltage	650V
Topology	Flyback
Control Mode	CURRENT-MODE
Max Input Voltage	20V
Control Technique	PULSE WIDTH MODULATION
Nominal Input Voltage	20V
Switcher Configuration	SINGLE
Max Output Power	140W
Internal Switch(s)	Yes
Fault Protection	Current Limiting, Over Load, Over Temperature, Over Voltage
Max Duty Cycle	98 %
Duty Cycle	95%
Output Isolation	Isolated
Voltage - Start Up	15V
Min Breakdown Voltage	650V
Height	9.19mm
Length	10.16mm
Width	4.7mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

FSCQ1265RTYDTU Product Details
