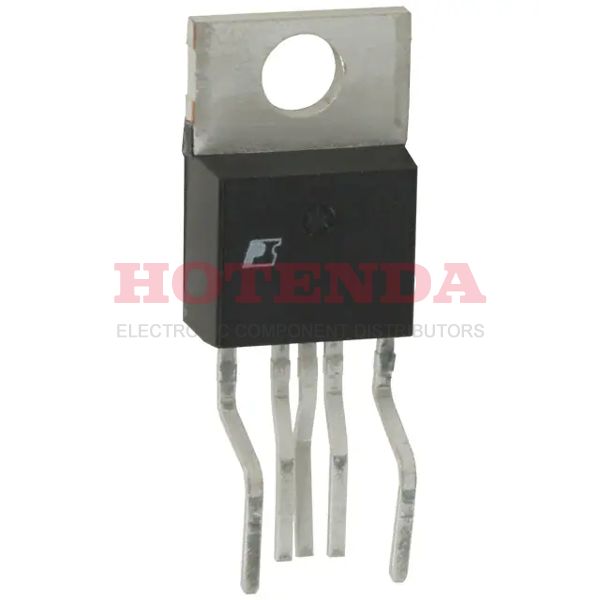

TOP232Y Overview
The ac to dc converter is embedded in TO-220-7 (Formed Leads), 5 Leads package.You can get it in AC/DC power converter Tube .There is a mounting point for this AC/DC converter in the way of Through Hole .Ideally, the ac dc converter should be operated at a temperature of -40°C~150°C TJ degrees Celsius.In this AC DC converter, an analog integrated circuit (IC) of type SWITCHING REGULATOR is employed.At this point, the switching frequency reaches 66kHz~132kHz .There are a total of 5 terminations.On the ac/dc converter, there are 7 pins.There are a total of 3 pins on the ac-dc converter.The AC to DC converter belongs to the manufacturer family of TOPSwitch?-FX .A total of 1 outputs are available for processing.AC to DC converter is contained in Switching Regulator or Controllers .This AC/DC converter produces a voltage of 12V as its output.A high efficiency can be achieved by operating at a frequency of 132kHz .A maximum current of 0.8A may be supplied to the ac to dc inverter.A minimum voltage supply across the converter is 85V .Across the converter, a maximum supply voltage of 265V may be applied.
TOP232Y Features
Packaged with TO-220-7 (Formed Leads), 5 Leads
Switching Frequency at 66kHz~132kHz
With 7 pins
TOP232Y Applications
There are a lot of Power Integrations TOP232Y AC DC Converters applications.
- Set -Top Box (STB) Power Supply
- Wall switches
- Standby Power Supply
- Appliance Power Supplies
- Smartphones
- MP3
- Battery chargers for cordless
- Humidifier
- Switching AC-DC Charger
- USB type-c v1.2 chargers with optional VDM
