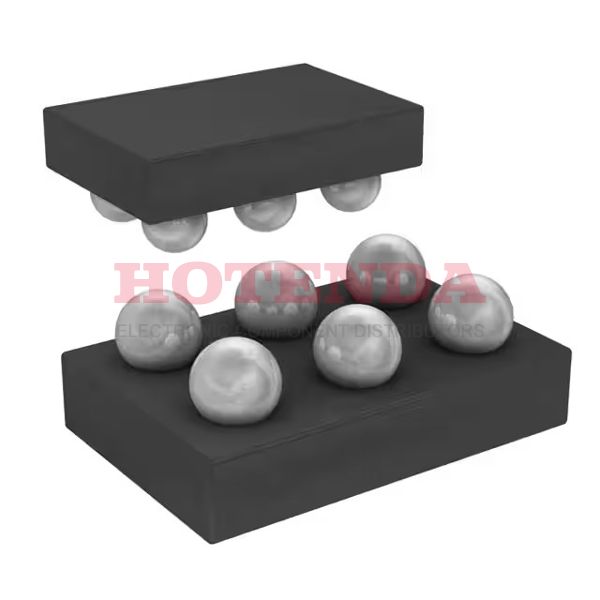

FFG3105UCX Overview
A 6-UFBGA, WLCSP package would be appropriate for this. IC POWER SUPPLY SUPPORT CIRCUIT is the system battery's analog IC. The available channels are 1. Currently, there are 6 pins on it. Tape & Reel (TR) cases are used for packaging. Surface Mount is the mount number for this electronic part. A minimum supply voltage of 2.5V volts is required for this electric part. Surface Mount is positioned in the way of this electronic part. Ensure that the power management IC's supply voltage does not exceed 4.5V volts. It can provide functions of type Battery Monitor. For the electronic part to perform properly, it should be operated at temperature -40°C~85°C TA. A battery chemistry of Lithium-Ion is used in this electronic part. It is recommended that this battery protection IC be set to 3.8V at all times. It is specified that the operating supply voltage for this battery instrument is 4.5V.
FFG3105UCX Features
Available in 6-UFBGA, WLCSP Package
with 6 Pins
Mounting Type: Surface Mount
Battery Chemistry : Lithium-Ion
operate supply voltage at the range of 3.8V
FFG3105UCX Applications
There are a lot of ON Semiconductor
FFG3105UCX Battery Management ICs applications.
- Fork lifts
- Grid power infrastructure
- Cell phone towers
- A/C power substations
- Internet infrastructure equipment
- Aviation ground support systems
- Tower communications
- Weather stations
- Distributed energy resources
- Solar and wind-generating plants
