FDMA1023PZ Description
The device is a single package solution specifically designed for battery charging switches in cellular phones and other ultra-portable applications. It has two independent P-channel MOSFET with low on-resistance and minimum on-loss. When connected in a typical public power configuration, two-way current flow can be achieved. The MicroFET 2X2 package provides excellent thermal performance for its physical size and is ideal for linear mode applications.
FDMA1023PZ Features
Max rDS(on) = 72m|? at VGS = ¨C4.5V, ID = ¨C3.7A
Max rDS(on) = 95m|? at VGS = ¨C2.5V, ID = ¨C3.2A
Max rDS(on) = 130m|? at VGS = ¨C1.8V, ID = ¨C2.0A
Max rDS(on) = 195m|? at VGS = ¨C1.5V, ID = ¨C1.0A

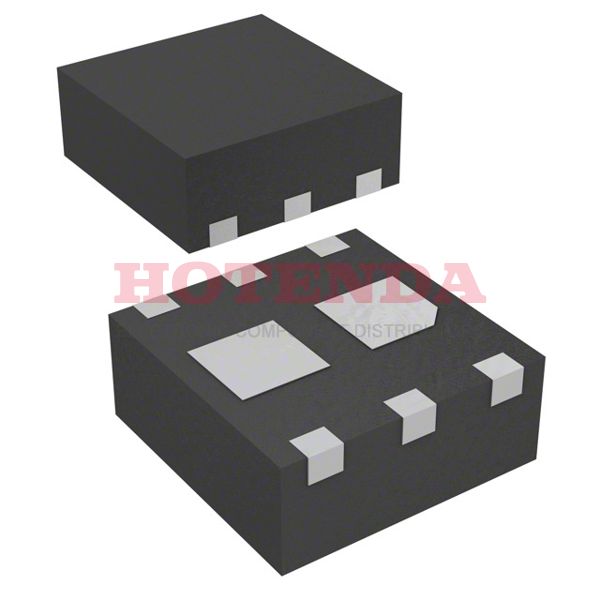

Low profile - 0.8 mm maximum - in the new packageMicroFET 2x2 mm
HBM ESD protection level > 2kV typical
RoHS Compliant
Free from halogenated compounds and antimonyoxides
FDMA1023PZ Applications
This product is general usage and suitable for many different applications.
