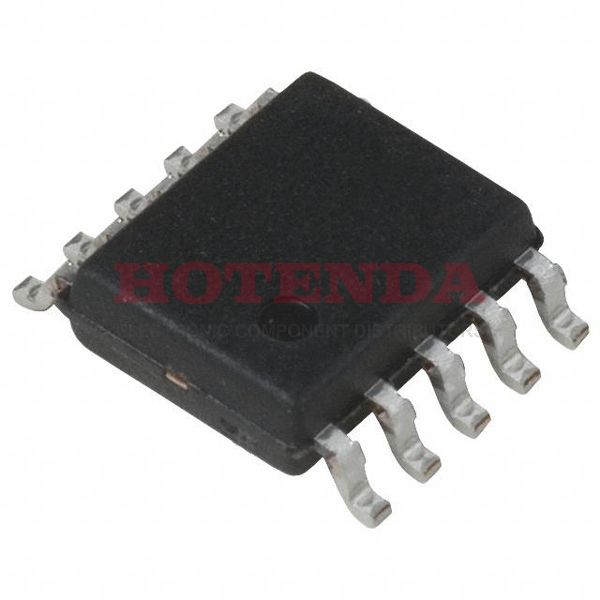

FAN7601G Overview
The ac to dc converter is embedded in 10-SOP (0.154, 3.90mm Width) package.Tube case is available for the ac dc converter.It is mounted in the way of Surface Mount .It is recommended that the ac dc converter be operated at a temperature of -25°C~125°C TA in order to ensure its performance.A SWITCHING CONTROLLER analog integrated circuit is used in this AC DC converter.As soon as the switching frequency reaches Up to 300kHz , the circuit is closed.As long as the supply voltage (Vcc/Vdd) is within the range of 8V~20V , the AC/DC converter may be used.As a result, it has a total of 10 terminations.You can search similar acdc converters based on FAN7601 family.Ac to dc inverters can only be powered at a maximum current of 0.25A .
FAN7601G Features
Packaged with 10-SOP (0.154, 3.90mm Width)
Switching Frequency at Up to 300kHz
FAN7601G Applications
There are a lot of ON Semiconductor FAN7601G AC DC Converters applications.
- Charger
- Rice Cooker
- Switching AC-DC Charger
- AC/DC Adaptors/Chargers for E-books
- Home Appliance Applications
- Auxiliary Power Supplies
- Tablets
- Adapter/Charger for Cordless Phones
- ZigBee
- Set Top Boxes (STB)
