LNK6776K Overview

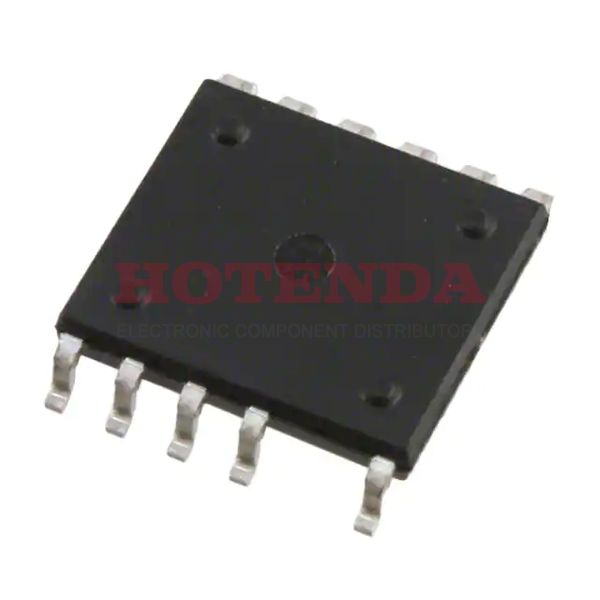

In the package 12-BESOP (0.350, 8.89mm Width), 11 Leads, Exposed Pad , the ac to dc converter is embedded.The ac dc converter is available in Tube case.As you can see, this AC/DC converter is mounted in the way of Surface Mount .This ac dc converter should be operated at a temperature of -40°C~150°C TJ °C so that it can deliver its performance.In this AC DC converter, an analog integrated circuit (IC) of type ANALOG CIRCUIT is employed.At this point, the switching frequency reaches 120kHz~136kHz .As a result, it has a total of 11 terminations.A ac/dc converter with 11 pins is available.It is suitable for mounting by Surface Mount .This AC to DC converter belongs to the LinkSwitch?-HP manufacturer family.This is the standard of REACH SVHC : No SVHC .The AC to DC converter can be powered under 265V voltage.An input voltage of less than 85V V is required to operate the AC to DC inverter.An input voltage (AC) should be applied to the AC to DC power converter that falls below 265V volts.
LNK6776K Features
Packaged with 12-BESOP (0.350, 8.89mm Width), 11 Leads, Exposed Pad
Switching Frequency at 120kHz~136kHz
With 11 pins
LNK6776K Applications
There are a lot of Power Integrations LNK6776K AC DC Converters applications.
- Power adapters for network devices
- IoT Applications
- SMPS house keeping power supplies
- Low-Voltage I/O System Power
- Standby and Auxiliary Power Supplies Set Top Boxes (STB)
- Digital cameras
- LED lights
- Battery Chargers
- 3.3V power supplies
- Power tools fast chargers with trickle and on/off
