DM74ALS534N Overview

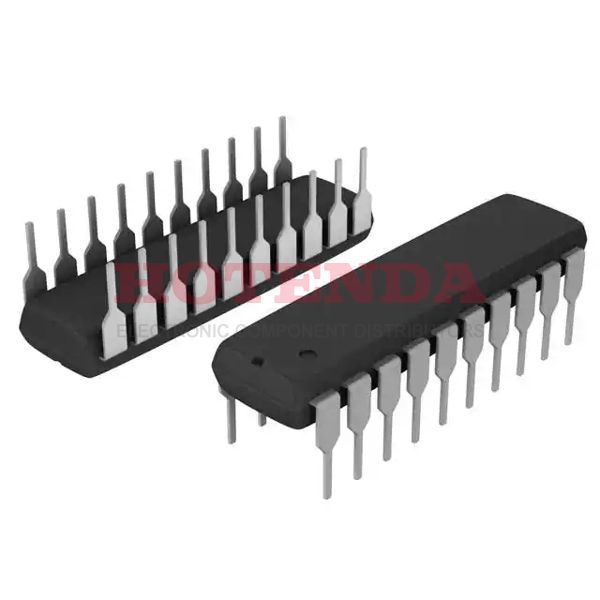

20-DIP (0.300, 7.62mm)is the way it is packaged. The Tubepackage contains it. In the configuration, Tri-State, Invertedis used as the output. Positive Edgeis the trigger it is configured with. Through Holemounts this electrical part. A 4.5V~5.5Vsupply voltage is required for it to operate. A temperature of 0°C~70°C TAis used in the operation. This logic flip flop is classified as type D-Type. It is a type of FPGA belonging to the 74ALS series. Its output frequency should not exceed 35MHz Hz. The list contains 1 elements. During its operation, it consumes 19mA quiescent energy. The 74ALS534 family contains this object. There is an electronic part that is mounted in the way of Through Hole. Basically, it is designed with a set of 20 pins. A Positive Edgeclock edge trigger is used in this device. To achieve this superior flexibility, 8 circuits are used. For high efficiency, the supply voltage should be set to 5V. It has 3 output lines to operate.
DM74ALS534N Features
Tube package
74ALS series
20 pins
DM74ALS534N Applications
There are a lot of ON Semiconductor DM74ALS534N Flip Flops applications.
- ATE
- Bounce elimination switch
- Modulo – n – counter
- EMI reduction circuitry
- Divide a clock signal by 2 or 4
- Frequency Divider circuits
- Asynchronous counter
- Registers
- Storage registers
- Data transfer
