74VHC374M Overview

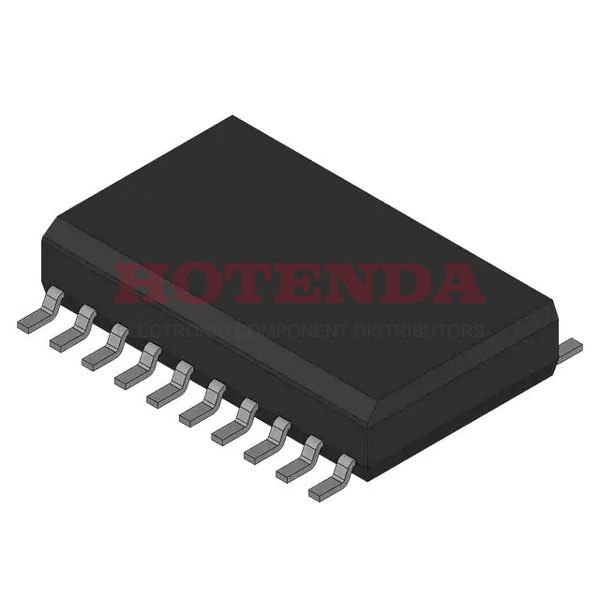

20-SOIC (0.295, 7.50mm Width)is the way it is packaged. It is included in the package Tube. This output is configured with Tri-State, Non-Inverted. Positive Edgeis the trigger it is configured with. The electronic part is mounted in the way of Surface Mount. Powered by a 2V~5.5Vvolt supply, it operates as follows. It is at -40°C~85°C TAdegrees Celsius that the system is operating. This electronic flip flop is of type D-Type. This type of FPGA is a part of the 74VHC series. There should be no greater frequency than 120MHzon its output. A total of 1 elements are present. As a result, it consumes 4μA of quiescent current without being affected by external factors. If you search by 74VHC374, you will find similar parts. Its input capacitance is 4pF farads. The electronic part is mounted in the way of Surface Mount. Basically, it is designed with a set of 20 pins. Edge triggering is a type of triggering that allows a circuit to become active at the positive edge or the negative edge of the clock signal. The clock edge trigger type of this device is Positive Edge. The superior flexibility of this product is achieved by using 8 circuits.
74VHC374M Features
Tube package
74VHC series
20 pins
74VHC374M Applications
There are a lot of ON Semiconductor 74VHC374M Flip Flops applications.
- QML qualified product
- Data storage
- Supports Live Insertion
- Guaranteed simultaneous switching noise level
- Count Modes
- Data transfer
- Counters
- CMOS Process
- Control circuits
- Memory
