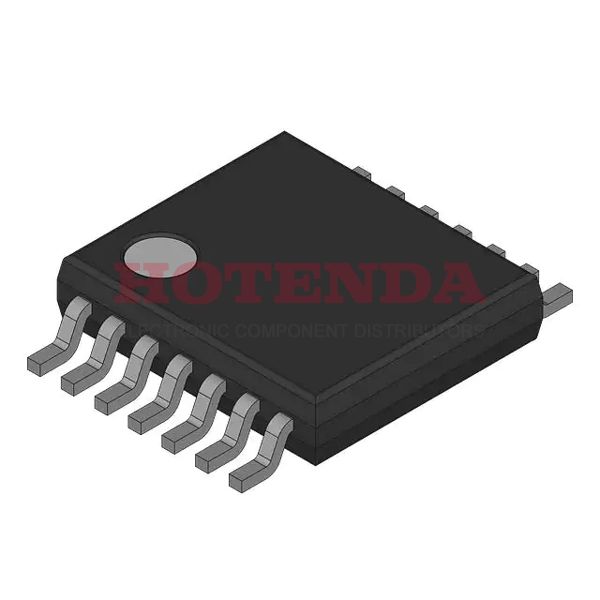

74AC20MTCX Overview
Due to its 14-TSSOP (0.173, 4.40mm Width) packaging, the part is convenient for international shipping. High reliability is achieved by using advanced packaging method Tape & Reel (TR). NAND Gate logic is the basis of its operation. This part needs a voltage of 2V~6V to function properly. An extended operating temperature of -40°C~85°C degrees Celsius. Part Surface Mount is mounted. High and low output current states are both 24mA 24mA. The series 74AC contains it. Use 74AC20 when searching for device variants. There are many applications for this logic device, mounted at Surface Mount. You can find the functions of the 14 pins in the datasheets. It supports inputs of 4. As the part is in a quiescent state, it has 2μA current flowing through it. A 2 circuit is present in this device. A device with 1 outputs is available. There are a total of 2 elements used in the operation. 2μA is the maximum current in standby mode. The operation of 2 gates is logical. Suppliers offer a package of 14-TSSOP. It is not advisable for the device to operate in environments where the temperature is higher than 85°C. As determined by test statistics, the part would operate at -40°C. In normalsituations, users should not supply voltages higher than 6V to the device. 2V is the lowest voltage that should be fed to the part.
74AC20MTCX Features
NAND Gate Logic Type
Operating Temperature: -40°C~85°C
Quiescent Current: 2μA
2 Gates
