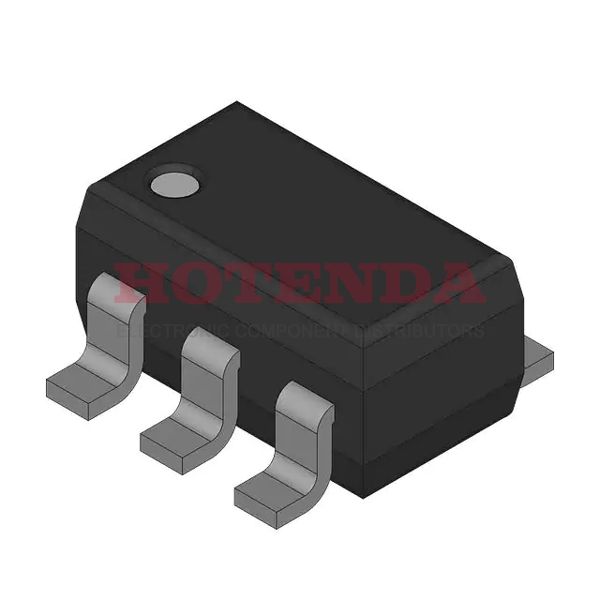

NC7S02M5 Overview
Packed in SC-74A, SOT-753, the part is convenient for shipping overseas. Advanced packaging method Tape & Reel (TR) is used to provide high reliability. It works based on the NOR Gate logic principle. To ensure the part's full function, a voltage of 2V~6V is needed. Extended operating temperature around -40°C~85°C. The part is mounted in Surface Mount. The high and low state of output current is 2.6mA 2.6mA. It comes from the 7S series. There are 5 terminations totally. The part has 1 functions that significantly boost the user experience. It represents the HC/UH product family. If you are looking for device variants, try search with 7S02. Surface Mount mounted, this logic device is widely used in many applications. Please refer to the datasheets for 5 pins functions. The part supports 2 inputs. In the quiescent state, the part has 1μA current flowing through it. It requires a minimal voltage of 2V to supply the device. The supply voltage should not exceed 6V. It is packed with the industry TAPE AND REEL method. The device's output current is rated 2.6mA. Logical operation through 1 gates.
NC7S02M5 Features
NOR Gate Logic Type
Operating Temperature: -40°C~85°C
HC/UH Family
Quiescent Current: 1μA
Output Current: 2.6mA
1 Gates
NC7S02M5 Applications
There are a lot of ON Semiconductor
NC7S02M5 Gates and Inverters applications.
- Air conditioner
- Home theater
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
