Name: XG4A-4032
Brand: Omron Electronics Inc-EMC Div
SKU: XG4A-4032
Price: 2.92000 USD
Availability: InStock

new-10%

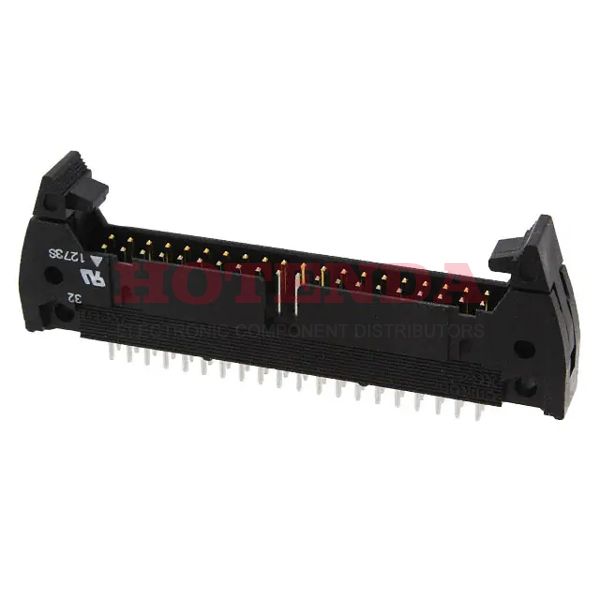

XG4A-4032

Manufacturer part number:XG4A-4032

Manufacturer:Omron Electronics Inc-EMC Div

Description:XG4A-4032 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Omron Electronics Inc-EMC Div stock available on our website

Case Package:SOT-23

Datasheet:XG4A-4032 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Material	Brass, Nickel
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Housing Material	PBT
Operating Temperature	-55°C~105°C
Packaging	Bulk
Published	2002
Series	XG4
JESD-609 Code	e3
Feature	Keying Slot, Mounting Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	40
Number of Rows	2
Fastening Type	Latch Lock/Eject Hooks, Short
Contact Finish - Mating	Gold
Contact Type	Male Pin
Orientation	Straight
Insulation Height	0.669 17.00mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	3A
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.126 3.20mm
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin
Contact Length - Mating	0.240 6.10mm
Contact Gender	Male
Overall Contact Length	0.657 16.70mm
Contact Resistance	20mOhm
Insulation Resistance	1GOhm
Max Voltage Rating (AC)	300V
Max Current Rating	3A
Contact Finish Thickness - Mating	5.90μin 0.150μm
Contact Finish Thickness - Post	78.7μin 2.00μm
Stack Height (Mating)	23.5mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant

XG4A-4032 Product Details

XG4A-4032 Overview

This product is packaged in a Header box.It's mounted Through Hole.We use a Bulk case to package the product.It's part of the XG4 Series.It is more powerful in many ways due to its Keying Slot, Mounting Flange feature.This part is mounted by Through Hole. Operating temperature is -55°C~105°C.
