0442420003

0442420003

0442420003

Molex

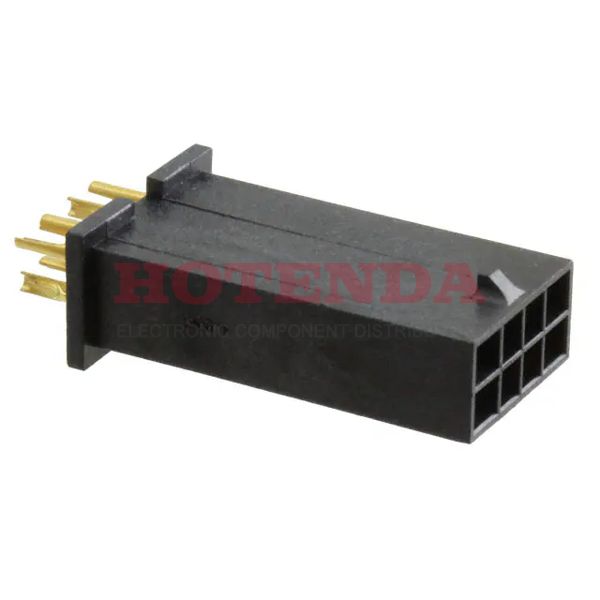

0442420003 datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Molex stock available on our website

SOT-23

0442420003 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 10 Weeks
Contact MaterialBeryllium Copper
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Liquid Crystal Polymer (LCP)
Shell Material POLYETHYLENE
PackagingBulk
Series Micro-Fit 3.0 44242
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Plug
Number of Positions 8
Applications General Purpose, Medical, Military, Telecommunications
Number of Rows 2
Fastening TypeLocking Ramp
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Insulation Height 1.100 27.94mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.118 3.00mm
Insulation Color Black
Row Spacing - Mating 0.118 (3.00mm)
Contact Length - Post 0.230 5.84mm
Shrouding Shrouded - 4 Wall
Mating Information MULTIPLE MATING PARTS AVAILABLE
Empty Shell NO
Material Flammability Rating UL94 V-0
RoHS StatusROHS3 Compliant
In-Stock:96 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$60.08000$60.08
10$56.54400$565.44
100$48.41580$4841.58

0442420003 Product Details

0442420003 Overview


This product is packaged in a Plug cartonThrough Hole is the mounting type for the device.We pack the product in a Bulk case.This product is from the Micro-Fit 3.0 44242 Series.The device may be used for the following applications: General Purpose, Medical, Military, Telecommunications.

0442420003 Features


Micro-Fit 3.0 44242 series

0442420003 Applications


There are a lot of Molex 0442420003 Rectangular Connectors applications.

  • Industrial Automation
  • Military Technology
  • Transportation
  • Automotive Electronics
  • Embedded systems
  • Communication
  • Medical technology
  • Instrumentation
  • Measuring & Control Technology
  • Datacom
