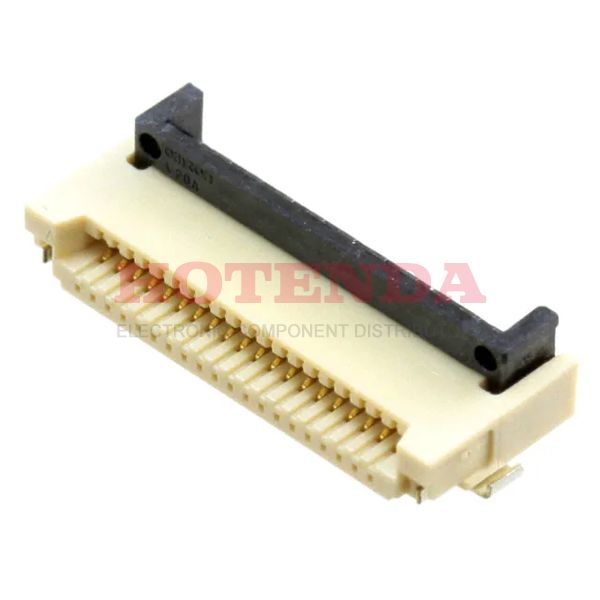

Name: XF3M20151BR100
Brand: Omron Electronics Inc-EMC Div
SKU: XF3M20151BR100
Availability: InStock

new-10%

XF3M20151BR100

Manufacturer part number:XF3M20151BR100

Manufacturer:Omron Electronics Inc-EMC Div

Description:XF3M20151BR100 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Omron Electronics Inc-EMC Div stock available on our website

Case Package:SOT-23

Datasheet:XF3M20151BR100 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	24 Weeks
Contact Material	Copper Alloy
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Operating Temperature	-30°C~85°C
Packaging	Bulk
Published	2011
Series	XF3M
Feature	Solder Retention
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	20
Voltage - Rated	50V
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Contact Finish	Gold
Housing Color	Natural
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Top and Bottom
Cable End Type	Tapered
Locking Feature	Rotary Lock, Backlock
Actuator Color	Black
Contact Finish Thickness	Flash
Height Above Board	0.079 2.00mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0

XF3M20151BR100 Product Details

XF3M20151BR100 Overview

The mounting type of the device is Surface Mount, Right Angle.Bulk cases are used to package the product.This product is part of the XF3M Series.There are a number of advantages to its Solder Retention feature.The device is operating at -30°C~85°C Operating Temperature.
