Name: XF2W-2015-1A
Brand: Omron Electronics Inc-EMC Div
SKU: XF2W-2015-1A
Availability: InStock

new-10%

XF2W-2015-1A

Manufacturer part number:XF2W-2015-1A

Manufacturer:Omron Electronics Inc-EMC Div

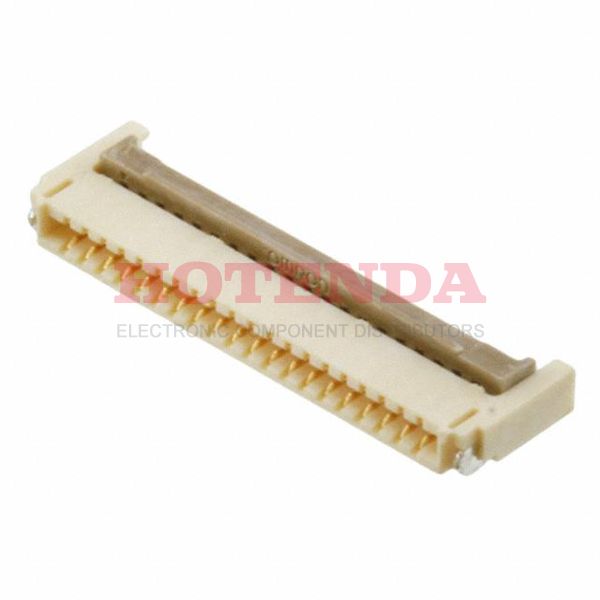

Description:XF2W-2015-1A datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Omron Electronics Inc-EMC Div stock available on our website

Case Package:SOT-23

Datasheet:XF2W-2015-1A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	51 Weeks
Contact Material	Copper Alloy
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Operating Temperature	-30°C~85°C
Packaging	Tape & Reel (TR)
Published	2006
Series	XF2W
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
ECCN Code	EAR99
Number of Positions	20
Number of Rows	1
Gender	Receptacle
Additional Feature	LOW PROFILE
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	20
Orientation	Right Angle
Depth	4.1mm
Current Rating	500mA
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Number Of PCB Rows	1
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.043 inch
UL Flammability Code	94V-0
Housing Color	Natural
Contact Style	BELLOWED TYPE
Contact Resistance	50mOhm
Max Voltage Rating (AC)	50V
Max Current Rating	500mA
Dielectric Withstanding Voltage	250VAC V
Max Voltage Rating (DC)	5.05kV
Contact Pattern	RECTANGULAR
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Top and Bottom
Cable End Type	Tapered
Locking Feature	Rotary Lock, Backlock
Actuator Color	Brown
Length	12mm
Contact Finish Thickness	5.90μin 0.150μm
Plating Thickness	6μin
Height Above Board	0.044 1.12mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

XF2W-2015-1A Product Details

XF2W-2015-1A Overview

The device's mounting type is Surface Mount, Right Angle.An orange Tape & Reel (TR) case is used to package the product.The product is a member of the XF2W Series.In addition, there are other features such as LOW PROFILE, to mention only a few.There is a mounting hole at Surface Mount.The device is operating at -30°C~85°C Operating Temperature.
