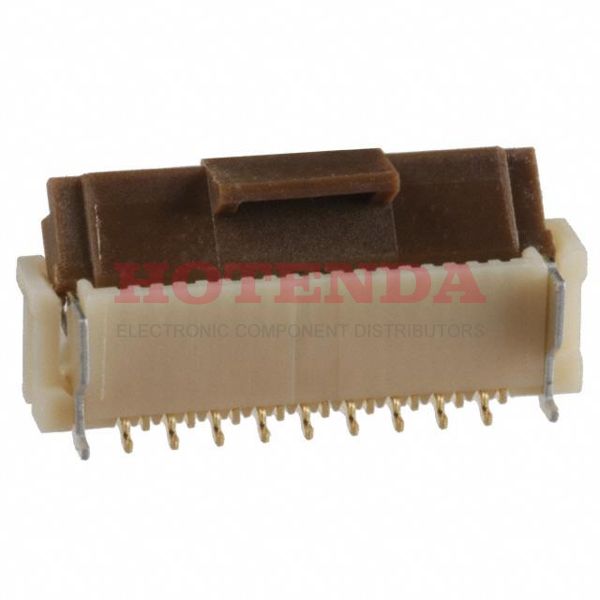

Name: FH12-18S-0.5SV(55)
Brand: Hirose Electric Co Ltd
SKU: FH12-18S-0.5SV(55)
Availability: InStock

new-10%

FH12-18S-0.5SV(55)

Manufacturer part number:FH12-18S-0.5SV(55)

Manufacturer:Hirose Electric Co Ltd

Description:FH12-18S-0.5SV(55) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH12-18S-0.5SV(55) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	PCB, Surface Mount, Through Hole
Mounting Type	Surface Mount
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Actuator Material	Polyphenylene Sulfide (PPS)
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
Series	FH12
JESD-609 Code	e4
Feature	Solder Retention, Zero Insertion Force (ZIF)
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	FFC/FPC CONNECTOR
Number of Positions	18
Color	Beige, Brown
Number of Rows	1
Gender	Female
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	18
Current Rating	500mA
Contact Finish	Gold
Voltage - Rated AC	50V
Lead Pitch	500μm
UL Flammability Code	94V-0
Housing Color	Beige
Contact Resistance	50mOhm
Insulation Resistance	500MOhm
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Vertical - 1 Sided
Cable End Type	Straight
Locking Feature	Flip Lock
Actuator Color	Brown
Width	12.4mm
Height Above Board	0.142 3.60mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

FH12-18S-0.5SV(55) Product Details

FH12-18S-0.5SV(55) Overview

Packaging is FFC/FPC CONNECTOR.This device's mounting type is Surface Mount.This product is packaged in a case marked Tape & Reel (TR).The product is a member of the FH12 Series.In many ways, Solder Retention, Zero Insertion Force (ZIF) makes it more powerful.In this case, PCB, Surface Mount, Through Hole mounts the part.Device runs in -40°C~85°C operating temperature.
