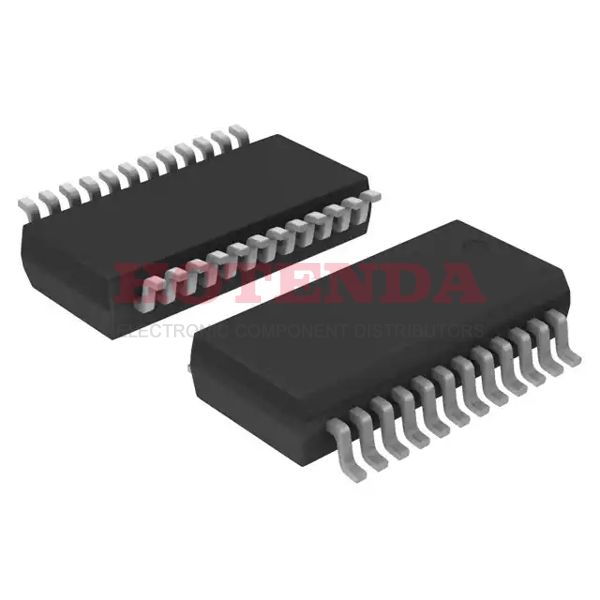

TDA9885TS/V5,118

Name: TDA9885TS/V5,118
Brand: NXP USA Inc.
SKU: TDA9885TS/V5,118
Availability: InStock

new-10%

Manufacturer part number:TDA9885TS/V5,118

Manufacturer:NXP USA Inc.

Description:0.65mm 5V 24 Video Processing Linear IC TDA9885 24-SSOP (0.209, 5.30mm Width)

Case Package:SOT-23

Datasheet:TDA9885TS/V5,118 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	24-SSOP (0.209, 5.30mm Width)
Surface Mount	YES
Packaging	Tape & Reel (TR)
Published	2008
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	24
Type	Demodulator
Applications	TV
HTS Code	8542.31.00.01
Terminal Position	DUAL
Terminal Form	GULL WING
Number of Functions	1
Terminal Pitch	0.65mm
Base Part Number	TDA9885
Pin Count	24
JESD-30 Code	R-PDSO-G24
Qualification Status	Not Qualified
Operating Temperature (Max)	70°C
Operating Temperature (Min)	-20°C
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	5V
Temperature Grade	OTHER
Supply Voltage-Min (Vsup)	4.5V
Supply Current-Max	70mA
Harmonic Distortion	0.5%
Output Voltage-Nom (FM)	540mV
Output Voltage-Nom (AM)	500mV
Length	8.2mm
Height Seated (Max)	2mm
Width	5.3mm
RoHS Status	ROHS3 Compliant
