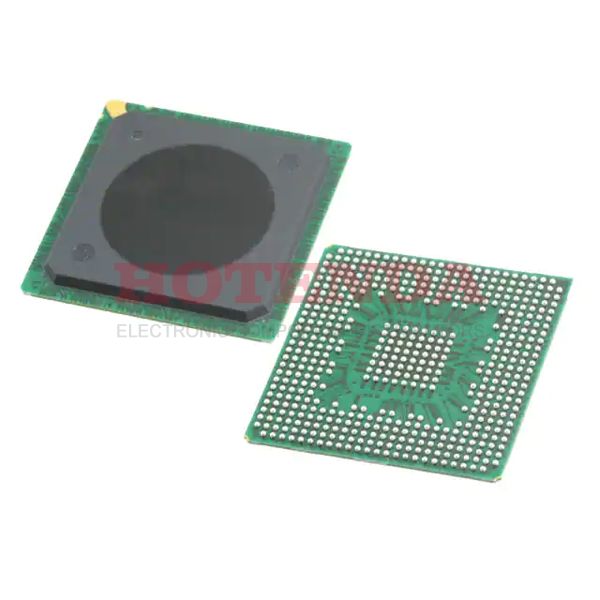

SPC5674FAMVY3R Description
The ST92F124/F150/F250 microcontroller is developed and manufactured by STMicroelectronicsusing a proprietary n-well HCMOS process. Its performance derives from the use of a flexible256-register programming model for ultra-fast con-text switching and real-time event response. The intelligent on-chip peripherals offload the ST9 core from I/O and data management processing tasks allowing critical application tasks to get the maximum use of core resources. The new-generationST9 MCU devices now also support low power consumption and low voltage operation for power-efficient and low-cost embedded systems.
SPC5674FAMVY3R Features
Dual issue, 32-bit CPU core complex (e200z7)
– Compliant with the Power Architecture? embedded
category
– 16 KB I-Cache and 16 KB D-Cache
– Includes an instruction set enhancement allowing
variable length encoding (VLE), optional encoding of
mixed 16-bit and 32-bit instructions, for code size
footprint reduction
– Includes signal processing extension (SPE2) instruction
support for digital signal processing (DSP) and
single-precision floating point operations
4 MB on-chip flash
– Supports read during program and erase operations, and
multiple blocks allowing EEPROM emulation
256 KB on-chip general-purpose SRAM including 32 KB
of standby RAM
Two direct memory access controller (eDMA2) blocks
– One supporting 64 channels
– One supporting 32 channels
Interrupt controller (INTC)
Frequency modulated phase-locked loop (FMPLL)
Crossbar switch architecture for concurrent access to
peripherals, flash, or RAM from multiple bus masters
External bus interface (EBI) for calibration and application
development (not available on all packages)
System integration unit (SIU)
Error correction status module (ECSM)
Boot assist module (BAM) supports serial bootload via
CAN or SCI
Two second-generation enhanced time processor units
(eTPU2) that share code and data RAM.
– 32 standard channels per eTPU2
– 24 KB code RAM
– 6 KB parameter (data) RAM
