Name: PIC18F4580-I/P
Brand: Microchip Technology
SKU: PIC18F4580-I/P
Price: 9.99000 USD
Availability: InStock

new

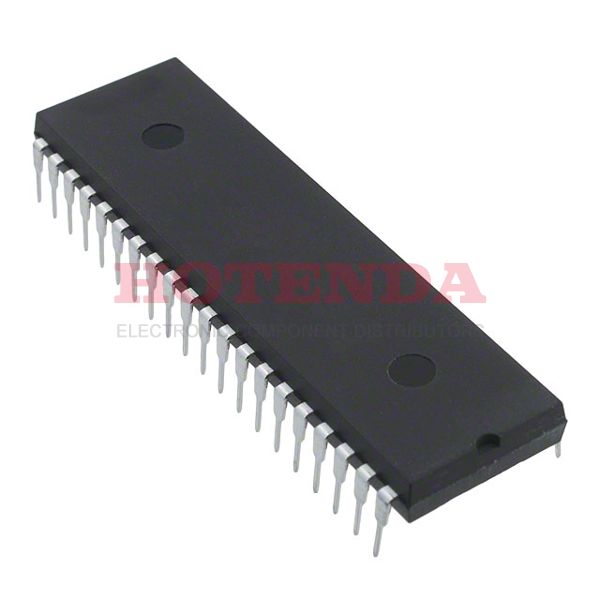

PIC18F4580-I/P

Manufacturer part number:PIC18F4580-I/P

Manufacturer:Microchip Technology

Description:32KB 16K x 16 FLASH PIC 8-Bit Microcontroller PIC® 18F Series PIC18F4580 40 Pin 40MHz 4.5V 40-DIP (0.600, 15.24mm)

Case Package:SOT-23

Datasheet:PIC18F4580-I/P Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	2 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	40-DIP (0.600, 15.24mm)
Number of Pins	40
Supplier Device Package	40-PDIP
Mounting Style	Through Hole
Interfaces	CAN/I2C/SPI/USART
Family Name	PIC18F
Instruction Set Architecture	RISC
Dimensions	2.095 x 0.58 x 0.195in
Typical Operating Supply Voltage	4.2 → 5.5 V
Package Type	PDIP
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-40 °C
Number of I/Os	36 I/O
Interface Type	I2C, SPI, USART
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
Tradename	PIC
RoHS	Details
Product Status	Active
Data Converters	A/D 11x10b
Mfr	Microchip Technology
Base Product Number	PIC18F4580
Package	Tube
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	PIC® 18F
Published	2004
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Number of Terminations	40
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Max Power Dissipation	1W
Terminal Position	DUAL
Supply Voltage	4.5V
Frequency	40MHz
Base Part Number	PIC18F4580
Pin Count	40
Power Supplies	5V
Interface	CAN, I2C, SPI, UART, USART
Memory Size	32kB
Oscillator Type	Internal
Number of I/O	36
Nominal Supply Current	400μA
Speed	40MHz
RAM Size	1.5K x 8
Voltage - Supply (Vcc/Vdd)	4.2V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Number of Bits	8
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, HLVD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	32KB 16K x 16
Connectivity	CANbus, I2C, SPI, UART/USART
Bit Size	8
Data Converter	A/D 11x10b
Watchdog Timer	Yes
Access Time	40 μs
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
Number of Timers/Counters	4
Address Bus Width	8b
Product Type	8-bit Microcontrollers - MCU
Density	256 kb
EEPROM Size	256 x 8
CPU Family	PIC
Number of A/D Converters	1
Number of UART Channels	0
Number of ADC Channels	11
Number of PWM Channels	5
Number of I2C Channels	1
Number of SPI Channels	1
Product	MCU
Number of Ethernet Channels	0
Product Category	8-bit Microcontrollers - MCU
Device Core	PIC
Height	4.953mm
Length	53.213mm
Width	14.732mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PIC18F4580-I/P Product Details

PIC18F4580-I/P Description

PIC18F4580-I/P developed by Microchip Technology is a type of enhanced flash microcontroller with 10-bit A/D and nanoWatt technology. It is able to deliver high computational performance at an economical price – with the addition of high-endurance, Enhanced Flash program memory. Based on the design enhancements, the PIC18F4580-I/P flash microcontroller is capable of providing optimum performance for many high-performance, power-sensitive applications.
