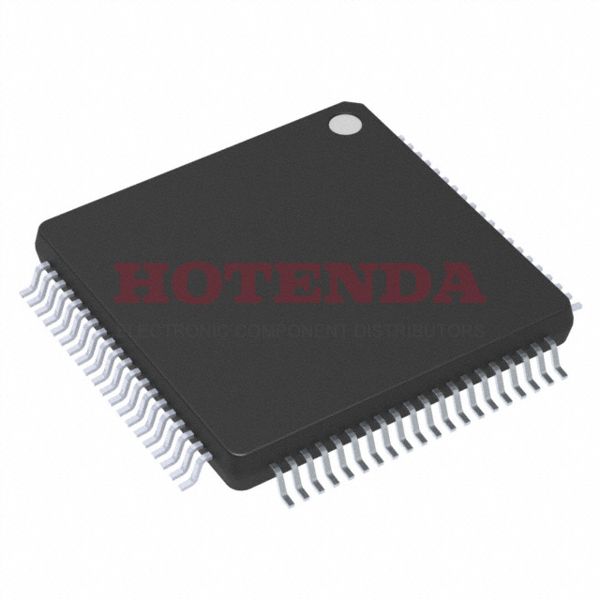

64KB 64K x 8 FLASH ARM® Cortex®-M4 32-Bit Microcontroller Kinetis K10 Series MK10DX64 3.3V 80-LQFP
SOT-23
MK10DX64VLK7 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
13 Weeks
Mounting Type
Surface Mount
Package / Case
80-LQFP
Surface Mount
YES
Operating Temperature
-40°C~105°C TA
Packaging
Tray
Series
Kinetis K10
Published
2002
JESD-609 Code
e3
Part Status
Active
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Number of Terminations
80
ECCN Code
3A991.A.2
Terminal Finish
MATTE TIN
HTS Code
8542.31.00.01
Terminal Position
QUAD
Terminal Form
GULL WING
Peak Reflow Temperature (Cel)
260
Supply Voltage
3.3V
Terminal Pitch
0.5mm
Time@Peak Reflow Temperature-Max (s)
40
Base Part Number
MK10DX64
JESD-30 Code
S-PQFP-G80
Qualification Status
Not Qualified
Supply Voltage-Max (Vsup)
3.6V
Power Supplies
1.8/3.3V
Supply Voltage-Min (Vsup)
1.71V
Oscillator Type
Internal
Number of I/O
56
Speed
72MHz
RAM Size
16K x 8
Voltage - Supply (Vcc/Vdd)
1.71V~3.6V
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER
Core Processor
ARM® Cortex®-M4
Peripherals
DMA, I2S, LVD, POR, PWM, WDT
Clock Frequency
50MHz
Program Memory Type
FLASH
Core Size
32-Bit
Program Memory Size
64KB 64K x 8
Connectivity
CANbus, EBI/EMI, I2C, IrDA, SPI, UART/USART
Supply Current-Max
39mA
Bit Size
32
Data Converter
A/D 31x16b; D/A 1x12b
Has ADC
YES
DMA Channels
YES
PWM Channels
YES
DAC Channels
YES
ROM (words)
65536
EEPROM Size
2K x 8
CPU Family
CORTEX-M4
Length
12mm
Width
12mm
RoHS Status
ROHS3 Compliant
In-Stock:583 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$6.19000
$6.19
10
$5.59000
$55.9
96
$5.33000
$511.68
192
$4.62802
$888.57984
576
$4.03000
$2321.28
MK10DX64VLK7 Product Details
MK10DX64VLK7 Description
MK10DX64VLK7 is a ARM microcontroller from the manufacturer NXP USA Inc.with RAM Size of 16K x 8. The operating temperature of the MK10DX64VLK7 is -40°C~105°C TA and its Clock Frequency is 50MHz. MK10DX64VLK7 has 80 pins and it is available in Tray packaging way. The Core Processor of MK10DX64VLK7 is ARM? Cortex?-M4.
MK10DX64VLK7 Features
Programmable delay block
Eight-channel motor control/general purpose/PWM timer
Two 2-channel quadrature decoder/general purpose timers
Periodic interrupt timers
16-bit low-power timer
Carrier modulator transmitter
Real-time clock
Controller Area Network (CAN) module
Two SPI modules
Two I2C modules
Four UART modules
I2S module
MK10DX64VLK7 Applications
Power Management
Consumer Electronics
Portable Devices
Industrial
