Name: SPC5605BK0MLQ4R
Brand: NXP USA Inc.
SKU: SPC5605BK0MLQ4R
Price: 24.81000 USD
Availability: InStock

new

SPC5605BK0MLQ4R

Manufacturer part number:SPC5605BK0MLQ4R

Manufacturer:NXP USA Inc.

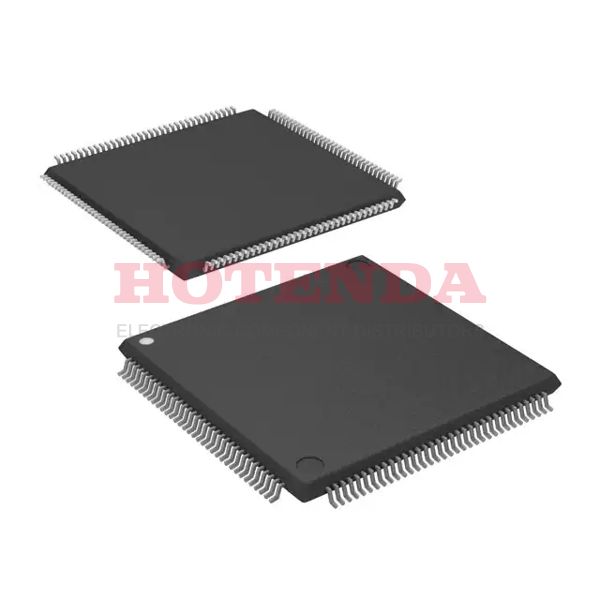

Description:768KB 768K x 8 FLASH e200z0h 32-Bit Microcontroller MPC56xx Qorivva Series SPC5605 3.3V 144-LQFP

Case Package:SOT-23

Datasheet:SPC5605BK0MLQ4R Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Mounting Type	Surface Mount
Package / Case	144-LQFP
Surface Mount	YES
Operating Temperature	-40°C~125°C TA
Packaging	Tape & Reel (TR)
Series	MPC56xx Qorivva
Published	2006
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	144
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	SPC5605
Supply Voltage-Max (Vsup)	3.6V
Supply Voltage-Min (Vsup)	3V
Oscillator Type	Internal
Number of I/O	121
Speed	64MHz
RAM Size	64K x 8
Voltage - Supply (Vcc/Vdd)	3V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	e200z0h
Peripherals	DMA, POR, PWM, WDT
Clock Frequency	40MHz
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	768KB 768K x 8
Connectivity	CANbus, I2C, LINbus, SCI, SPI
Bit Size	32
Data Converter	A/D 15x10b, 5x12b
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
EEPROM Size	64K x 8
Length	20mm
Width	20mm
RoHS Status	ROHS3 Compliant

SPC5605BK0MLQ4R Product Details

SPC5605BK0MLQ4R Overview

This Microcontroller comes in a 144-LQFP package. This Microcontroller has 121 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 32-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~125°C TA Operating Temperature. Microcontroller runs in MPC56xx Qorivva Series. The size of the program memory of Microcontroller is 768KB 768K x 8. MCU is powered by e200z0h Core Processor. The device belongs to MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs Type. The MCU has a number of 144 terminals. Microcontroller comes with 32 bit size. The component always operates in 3.3V supply voltage. MCU chip has YES DMA channels. You can find alternatives through the base part number SPC5605. The device works in YES PWM channels. It is at 40MHz clock frequency.
