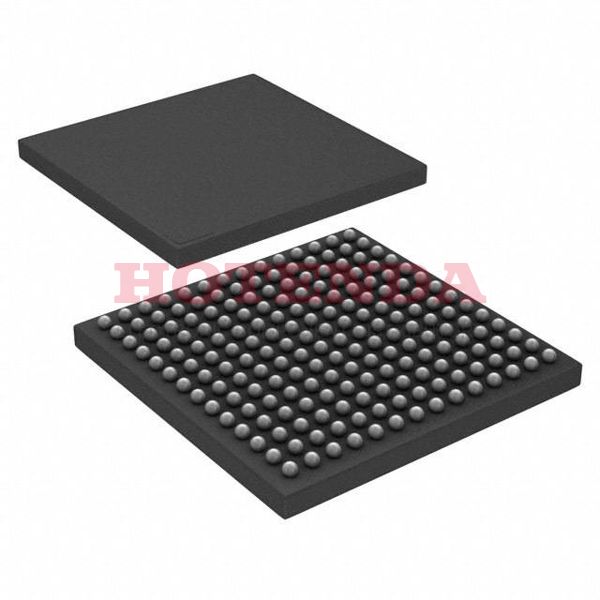

Name: MIMXRT1062CVJ5A
Brand: NXP USA Inc.
SKU: MIMXRT1062CVJ5A
Availability: InStock

new-10%

MIMXRT1062CVJ5A

Manufacturer part number:MIMXRT1062CVJ5A

Manufacturer:NXP USA Inc.

Description:External Program Memory ARM® Cortex®-M7 32-Bit Microcontroller RT1060 Series 196-LFBGA

Case Package:SOT-23

Datasheet:MIMXRT1062CVJ5A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Mounting Type	Surface Mount
Package / Case	196-LFBGA
Surface Mount	YES
Operating Temperature	-40°C~105°C TJ
Packaging	Tray
Series	RT1060
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	196
Terminal Position	BOTTOM
Terminal Form	BALL
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.8mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	40
JESD-30 Code	S-PBGA-B196
Supply Voltage-Max (Vsup)	1.26V
Supply Voltage-Min (Vsup)	1.15V
Oscillator Type	Internal/External
Number of I/O	127
Speed	528MHz
RAM Size	1M x 8
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROPROCESSOR, RISC
Core Processor	ARM® Cortex®-M7
Peripherals	Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT
Program Memory Type	External Program Memory
Core Size	32-Bit
Connectivity	CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SAI, SPDIF, SPI, UART/USART, USB OTG
Data Converter	A/D 20x12b
Address Bus Width	13
Boundary Scan	YES
Low Power Mode	YES
External Data Bus Width	16
Format	FLOATING POINT
Integrated Cache	YES
Length	12mm
Height Seated (Max)	1.61mm
Width	12mm
RoHS Status	RoHS Compliant

MIMXRT1062CVJ5A Product Details

MIMXRT1062CVJ5A Overview

Packaged in a 196-LFBGA format, this MCU is available in a compact size. There are 127 I/Os on the Microcontroller. It is important to note that the Microcontroller has a Surface Mount mounting type. 32-Bit core is the basis for this Microcontroller. This program has a type of memory called External Program Memory for this MCU's program memory. Temperatures in this range are operated by this Microcontroller. The RT1060 series includes this electrical component. With a ARM® Cortex®-M7 Core processor, MCU is equipped with the latest technology available. This is a MICROPROCESSOR, RISC uPs/uCs/Peripheral IC. During the manufacturing process, 196 terminations were applied to the IC chip.
