Name: Z86E4016VSC
Brand: Zilog
SKU: Z86E4016VSC
Availability: InStock

new-10%

Z86E4016VSC

Manufacturer part number:Z86E4016VSC

Manufacturer:Zilog

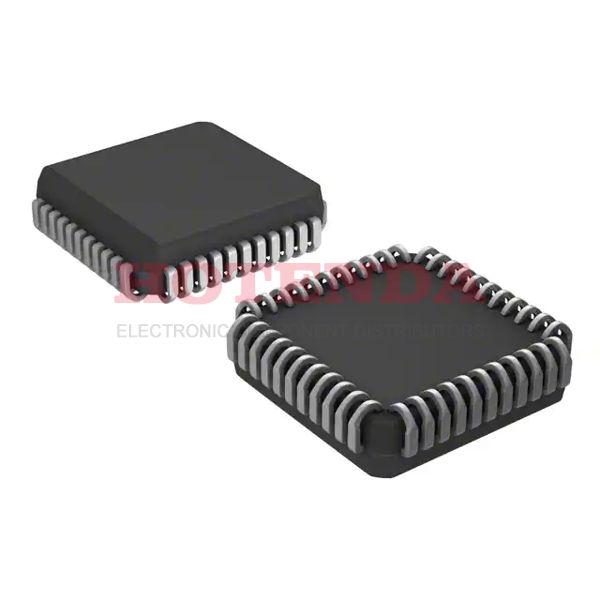

Description:4KB 4K x 8 OTP Z8 8-Bit Microcontroller Z8® Series Z86E40 44 Pin 16MHz 44-LCC (J-Lead)

Case Package:SOT-23

Datasheet:Z86E4016VSC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	44-LCC (J-Lead)
Surface Mount	YES
Number of Pins	44
Operating Temperature	0°C~70°C TA
Packaging	Tube
Series	Z8®
Published	1998
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	44
Terminal Finish	Tin/Lead (Sn/Pb)
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	J BEND
Peak Reflow Temperature (Cel)	225
Terminal Pitch	1.27mm
Frequency	16MHz
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	Z86E40
Pin Count	44
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	3.5/5.5V
Supply Voltage-Min (Vsup)	3.5V
Memory Size	4kB
Oscillator Type	Internal
Number of I/O	32
RAM Size	236 x 8
Memory Type	EPROM, OTP
Voltage - Supply (Vcc/Vdd)	3.5V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	Z8
Peripherals	POR, WDT
Program Memory Type	OTP
Core Size	8-Bit
Program Memory Size	4KB 4K x 8
Supply Current-Max	25mA
Bit Size	8
Access Time	16 μs
Has ADC	NO
DMA Channels	NO
Data Bus Width	8b
PWM Channels	NO
DAC Channels	NO
Address Bus Width	16
ROM (words)	4096
CPU Family	Z8
Length	16.5862mm
Height Seated (Max)	4.57mm
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

Z86E4016VSC Product Details

Z86E4016VSC Overview

There is a 44-LCC (J-Lead) package available. The board has 32 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 8-Bit core is used in order to power the IC chip. The type of memory it uses for its program is OTP. 0°C~70°C TA is the temperature range at which this Microcontroller operates. Z8®-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 4KB 4K x 8. Powered by a Z8 Core processor. Microcontroller's a MICROCONTROLLER uPs/uCs/Peripheral IC. IC Chip terminations are 44. As a result, this Microcontroller comes with a 8-bit size. A total of NO DMA channels are available. This IC part has a memory size of 4kB. There are a number of alternatives to the base part number Z86E40 that you can find. Performing well when operated at frequency 16MHz can be achieved. Using NO PWM channels, the device works. On the chip, there are 44 pins that can be accessed. The pins counted are 44. The device is powered by the the Z8 CPU family that is embedded in it. EPROM, OTP memory is one of the features of this equipment.
