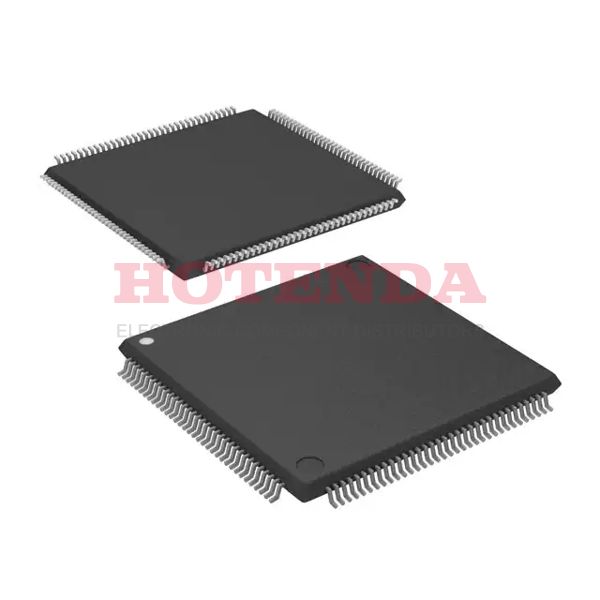

Name: LPC2378FBD144,551
Brand: NXP USA Inc.
SKU: LPC2378FBD144,551
Price: 11.43000 USD
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mounting Type	Surface Mount
Package / Case	144-LQFP
Surface Mount	YES
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	LPC2300
Published	2003
JESD-609 Code	e3
Part Status	Not For New Designs
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	144
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	LPC237*
Pin Count	144
JESD-30 Code	S-PQFP-G144
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	3.3V
Supply Voltage-Min (Vsup)	3V
Oscillator Type	Internal
Number of I/O	104
Speed	72MHz
RAM Size	58K x 8
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM7®
Peripherals	Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Clock Frequency	25MHz
Program Memory Type	FLASH
Core Size	16/32-Bit
Program Memory Size	512KB 512K x 8
Connectivity	CANbus, EBI/EMI, Ethernet, I2C, Microwire, Memory Card, SPI, SSI, SSP, UART/USART, USB
Bit Size	32
Data Converter	A/D 8x10b; D/A 1x10b
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
DAC Channels	YES
Address Bus Width	16
ROM (words)	524288
External Data Bus Width	8
Length	20mm
Height Seated (Max)	1.6mm
Width	20mm
RoHS Status	ROHS3 Compliant

LPC2378FBD144,551 Product Details

LPC2378FBD144,551 Overview

For space savings, it is available in the 144-LQFP package. A surface Mount is used for mounting. You can find it in the package Tray. With a processor of ARM7? cores, the device is powered. When working, it is recommended that the temperature be kept at -40°C~85°C TA. The type of memory it uses is FLASH. There are 104 I/Os on it, which makes it a very simple device. In order to find similar components, it has a base part number of LPC237*. The terminals of this device are set to QUAD. This circuit consists of 144 terminations. In the LPC2300 series, this electrical component is found. This is due to the fact that the supply voltage is 3.3V, resulting in high efficiency. The gadget has MICROCONTROLLER, RISC as its uPs/uCs/peripheral IC. A total of 144 pins are attached to it. It is one of the components included in Microcontrollers. Power is provided by a 3.3V source. The clock of the device runs at a 25MHz frequency. Normal operation requires a supply voltage (Vsup) above 3V. Using an oscillator type Internal, it operates.
