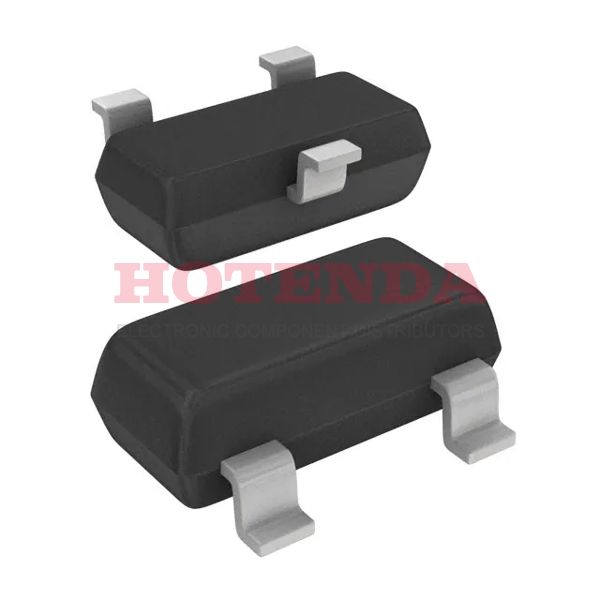

BFS505,115

new-10%

Manufacturer part number:BFS505,115

Manufacturer:NXP USA Inc.

Description:TRANS NPN 15V 9GHZ SOT323

Case Package:SOT-23

Datasheet:BFS505,115 Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	SC-70, SOT-323
Surface Mount	YES
Transistor Element Material	SILICON
Operating Temperature	175°C TJ
Packaging	Tape & Reel (TR)
Published	1997
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Additional Feature	LOW NOISE, HIGH RELIABILITY
HTS Code	8541.21.00.75
Subcategory	Other Transistors
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
[email protected] Reflow Temperature-Max (s)	40
Base Part Number	BFS505
Pin Count	3
JESD-30 Code	R-PDSO-G3
Qualification Status	Not Qualified
Number of Elements	1
Configuration	SINGLE
Power - Max	150mW
Transistor Application	AMPLIFIER
Polarity/Channel Type	NPN
Transistor Type	NPN
DC Current Gain (hFE) (Min) @ Ic, Vce	60 @ 5mA 6V
Voltage - Collector Emitter Breakdown (Max)	15V
Current - Collector (Ic) (Max)	18mA
Transition Frequency	9000MHz
Frequency - Transition	9GHz
Power Dissipation-Max (Abs)	0.15W
Highest Frequency Band	L B
Noise Figure (dB Typ @ f)	1.2dB ~ 2.1dB @ 900MHz
Power Dissipation Ambient-Max	0.15W
RoHS Status	ROHS3 Compliant
