74LV32BQ,115 Overview

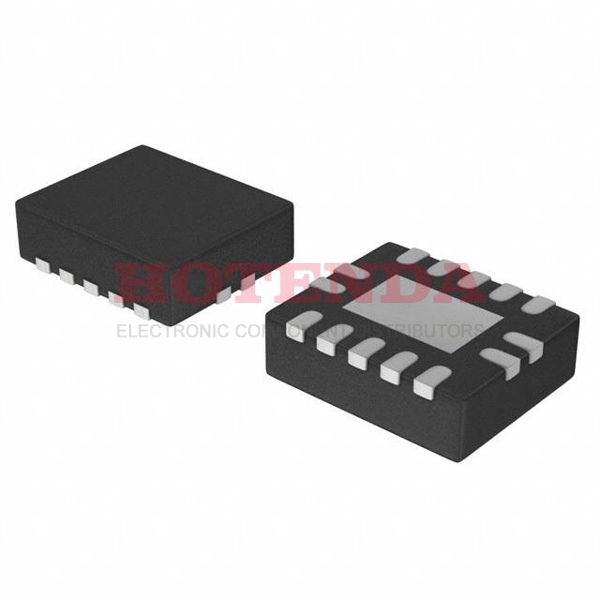

Packed in 14-VFQFN Exposed Pad, the part is convenient for shipping overseas. Advanced packaging method Tape & Reel (TR) is used to provide high reliability. It works based on the OR Gate logic principle. To ensure the part's full function, a voltage of 1V~5.5V is needed. Extended operating temperature around -40°C~125°C. The part is mounted in Surface Mount. The high and low state of output current is 12mA 12mA. It comes from the 74LV series. There are 14 terminations totally. The part has 4 functions that significantly boost the user experience. It represents the LV/LV-A/LVX/H product family. If you are looking for device variants, try search with 74LV32. 14 pins are injected into the part body. The part supports 2 inputs. This device is composed of 4 circuits. The part bears a load capacitance of 50pF. It requires a minimal voltage of 1V to supply the device. The supply voltage should not exceed 5.5V. As specified in datasheets, the part requires 3.3V power supplies. The maximum current in standby mode is 40μA.
74LV32BQ,115 Features
OR Gate Logic Type
Operating Temperature: -40°C~125°C
LV/LV-A/LVX/H Family
74LV32BQ,115 Applications
There are a lot of NXP USA Inc.
74LV32BQ,115 Gates and Inverters applications.
- Air conditioner
- Home theater
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
