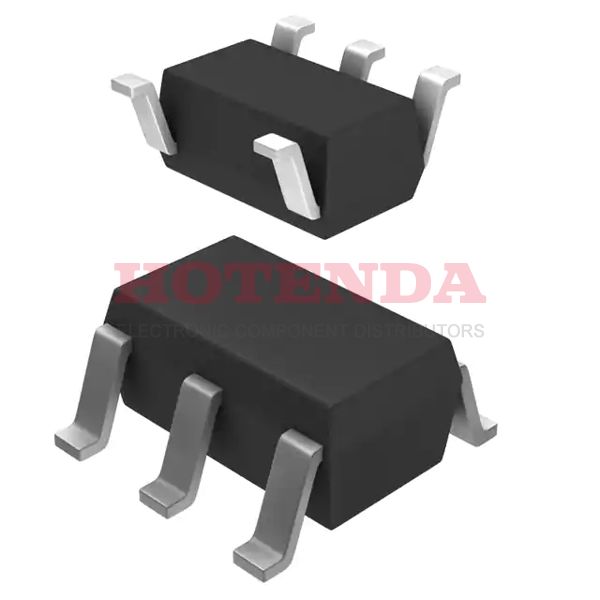

74LVC1G32W5-7 Overview
The part is convenient to ship overseas because it is packed in a SC-74A, SOT-753. The advanced packaging method Tape & Reel (TR) provides high reliability. A OR Gate logic principle governs its operation. Voltage 1.65V~5.5V is needed to ensure the part's full functionality. Operational temperature extended around -40°C~125°C. Mounted in Surface Mount. Output current is 32mA 32mA in the high and low states. 74LVC is the series it belongs to. The total number of terminations is 5. There are 1 functions that significantly improve the user experience. As part of LVC/LCX/Z, this chip is used. Try searching with 74LVC1G32 to find device variants. A total of 5 pins are injected into the body of the part. Logic devices with Surface Mount mounting are widely used in many applications. Datasheets for functions of 5 pins are available. Inputs are limited to 2. Quiescent parts have 200μA current flowing through them. The method TAPE AND REEL is packed into it. This part requires 3.3V power supplies, according to its datasheet. Its output current is rated at 32mA. 1 gates are used in logical operations.
74LVC1G32W5-7 Features
OR Gate Logic Type
Operating Temperature: -40°C~125°C
LVC/LCX/Z Family
Quiescent Current: 200μA
Output Current: 32mA
1 Gates
74LVC1G32W5-7 Applications
There are a lot of Diodes Incorporated
74LVC1G32W5-7 Gates and Inverters applications.
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
