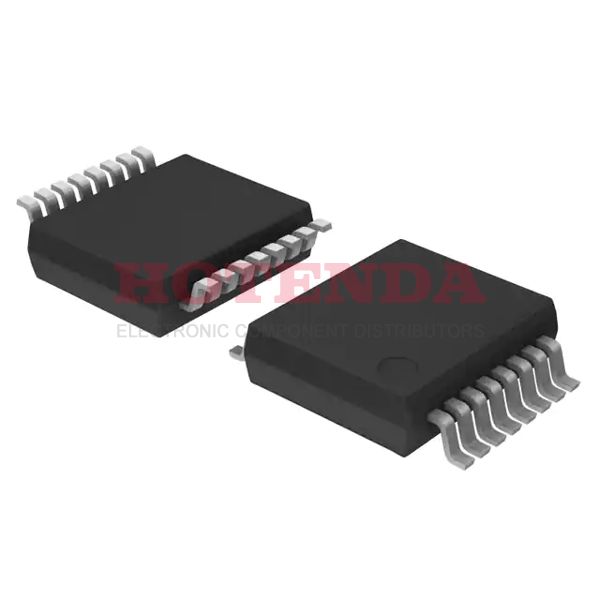

74HC7046ADB,112 Overview
As a clock IC, PLLs is packaged using the Tube method. This clock generator is embedded in the 16-SSOP (0.209, 5.30mm Width) package. Under reflowing process, this clock generator ic is able to sustain a maximum temperature of 260. 16 terminations can be found in frequency synthesizer. Basically, a voltage of 5V should be applied to this electronic frequency generator. Clock is designed as this clock generator's input. 1 circuits are implemented to access the electronic component's full performance. This clock-based frequency generator provides a frequency up to 21MHz Max. This component can be conveniently installed on the panel thanks to the Surface Mount. The maximal supply voltage this clock generator would take is 6V. The supply voltage for this frequency synthesizer should be kept above 2V for safety considerations. Clock PLL works with 3V~6V supply voltage provided. The ambient temperature should be set at -40°C~125°C, which is estimated by the test statistics. This electronic component can be classified as a Phase Lock Loop (PLL). This clock-generating IC is a 16-bit device designed explicitly for microprocessors. According to the base part number 74HC7046, its related parts can be found. And basically, this clock generator is often classified as a kind of PLL or Frequency Synthesis Circuits. This electronic part is a member of the 74HC series.
74HC7046ADB,112 Features
Available in the 16-SSOP (0.209, 5.30mm Width)
Supply voltage of 5V
74HC7046ADB,112 Applications
There are a lot of NXP USA Inc.
74HC7046ADB,112 Clock Generators applications.
- Instrument
- Automatic test equipment
- Wide area power system
- Digital circuits
- Wireless base station for LTE, LTE-advanced
- Picocells, femtocells and small cells
- Sampling clocks for ADC and DAC
- 1 Gigabit Ethernet
- 10 Gigabit Ethernet
- FPGA and processor clocks
