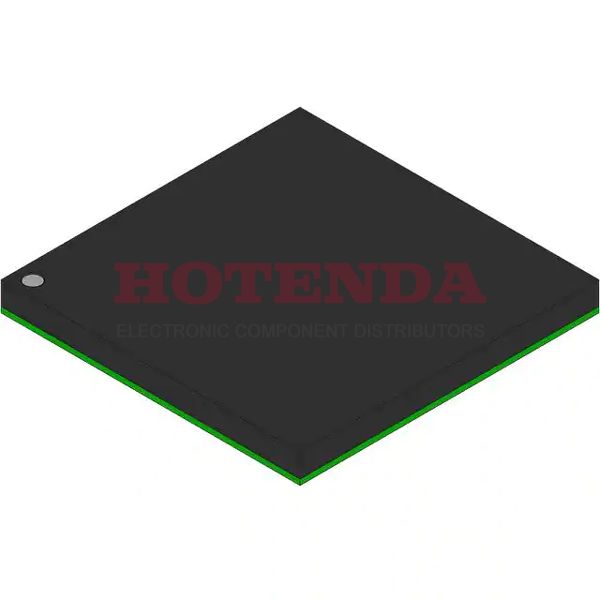

Name: SPC5565MVZ132R
Brand: NXP Semiconductors / Freescale
SKU: SPC5565MVZ132R
Availability: InStock

new-10%

SPC5565MVZ132R

Manufacturer part number:SPC5565MVZ132R

Manufacturer:NXP Semiconductors / Freescale

Description:Microcontroller 1.5V

Case Package:SOT-23

Datasheet:SPC5565MVZ132R Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Surface Mount	YES
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	324
HTS Code	8542.31.00.01
Subcategory	Microcontrollers
Technology	CMOS
Terminal Position	BOTTOM
Terminal Form	BALL
Supply Voltage	1.5V
Terminal Pitch	1mm
JESD-30 Code	S-PBGA-B324
Qualification Status	Not Qualified
Operating Temperature (Max)	125°C
Operating Temperature (Min)	-40°C
Supply Voltage-Max (Vsup)	1.65V
Power Supplies	1.53.35V
Temperature Grade	AUTOMOTIVE
Supply Voltage-Min (Vsup)	1.35V
Speed	132 MHz
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Clock Frequency	20MHz
Supply Current-Max	510mA
Bit Size	32
Has ADC	YES
DMA Channels	NO
PWM Channels	YES
Halogen Free	Halogen Free
ROM (words)	2097152
Screening Level	AEC-Q100
External Data Bus Width	32
RAM (bytes)	81920
ROM Programmability	FLASH
Length	23mm
Width	23mm
RoHS Status	Non-RoHS Compliant

SPC5565MVZ132R Product Details

SPC5565MVZ132R Overview

This is a MICROCONTROLLER uPs/uCs/Peripheral IC. During the manufacturing process, 324 terminations were applied to the IC chip. 32-bits are used in Microcontroller. The MCU chip's supply output is 1.5V volts. Currently, MCU chip has NO DMA channels. There are YES PWM channels on the device. The clock function of this device is based on a 20MHz-frequency.
