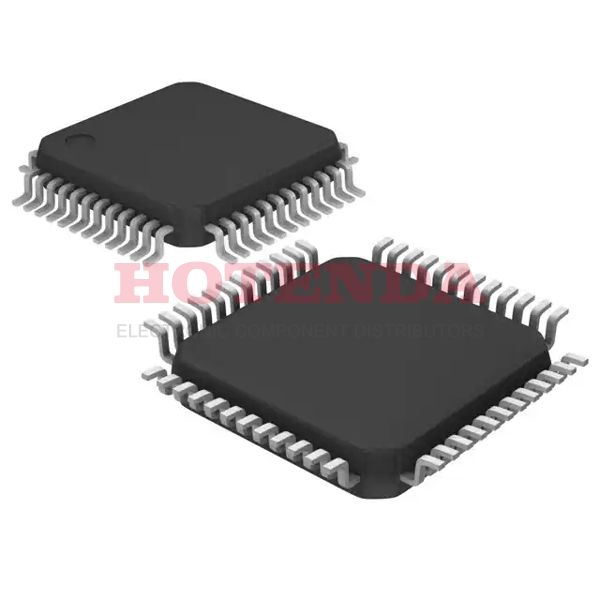

32KB 32K x 8 FLASH ARM® Cortex®-M3 32-Bit Microcontroller STM32F1 Series STM32F103 48 Pin 72MHz 3.3V 48-LQFP
SOT-23
STM32F103C6T6 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
48-LQFP
Number of Pins
48
Operating Temperature
-40°C~85°C TA
Packaging
Tray
Series
STM32F1
JESD-609 Code
e4
Pbfree Code
yes
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Number of Terminations
48
Termination
SMD/SMT
Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)
Max Power Dissipation
363mW
Terminal Position
QUAD
Terminal Form
GULL WING
Peak Reflow Temperature (Cel)
260
Supply Voltage
3.3V
Terminal Pitch
0.5mm
Frequency
72MHz
Base Part Number
STM32F103
Pin Count
48
Supply Voltage-Max (Vsup)
3.6V
Supply Voltage-Min (Vsup)
2V
Interface
CAN, I2C, IrDA, LIN, SPI, UART, USART, USB
Memory Size
32kB
Oscillator Type
Internal
Number of I/O
37
RAM Size
10K x 8
Voltage - Supply (Vcc/Vdd)
2V~3.6V
uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC
Number of Bits
32
Core Processor
ARM® Cortex®-M3
Peripherals
DMA, Motor Control PWM, PDR, POR, PVD, PWM, Temp Sensor, WDT
Program Memory Type
FLASH
Core Size
32-Bit
Program Memory Size
32KB 32K x 8
Connectivity
CANbus, I2C, IrDA, LINbus, SPI, UART/USART, USB
Supply Current-Max
50mA
Bit Size
32
Data Converter
A/D 10x12b
Has ADC
YES
DMA Channels
YES
Data Bus Width
32b
PWM Channels
YES
DAC Channels
NO
Number of Timers/Counters
2
Density
256 kb
Core Architecture
ARM
CPU Family
CORTEX-M3
Length
7mm
Height Seated (Max)
1.6mm
REACH SVHC
No SVHC
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:4762 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
STM32F103C6T6 Product Details
STM32F103C6T6 Description
The STM32F103C6T6 performance line series has an ARM? CortexTM-M3 32-bit RISC processor running at 72 MHz, high-speed embedded storage (Flash memory up to 32 Kbytes and SRAM up to 6 Kbytes), and a wide range of upgraded I/Os and peripherals connected to two APB buses. All of the devices have two 12-bit ADCs, three general-purpose 16-bit timers, and one PWM timer, as well as standard and sophisticated communication interfaces such as up to two I2Cs and SPIs, three USARTs, a USB, and a CAN.
The STMicroelectronics STM32F103C6T6 low-density performance line family requires a power source ranging from 2.0 to 3.6 V. It is offered in two temperature ranges: –40 to +85 °C and –40 to +105 °C extended temperature range. Low-power applications can be designed thanks to a wide collection of power-saving modes.
The STM32F103C6T6 low-density performance series contains devices with 36 to 64 pins in four different package configurations. Different sets of peripherals are supplied depending on the device selected; the description below provides an overview of the entire range of peripherals available in this family.
STM32F103C6T6 Features
? ARM CortexTM-M3 32-bit CPU Core
– Maximum frequency of 72 MHz, performance of 1.25 DMIPS/MHz (Dhrystone 2.1) at 0 wait state memory access
– Hardware division and single-cycle multiplication
? Recollections
– Flash memory of 16 or 32 kilobytes
– SRAM of 6 or 10 kilobytes
? Timekeeping, supply management, and reset
– I/Os and a 2.0 to 3.6 V application supply
– programmable voltage detector, POR, and PDR (PVD)
– Crystal oscillator, 4 to 16 MHz
– Factory-tuned 8 MHz internal RC
– Internal RC at 40 kHz
– PLL clock for CPU
– RTC oscillator at 32 kHz with calibration
? Low power consumption
– Standby, Sleep, and Stop modes
– RTC and backup registers VBAT supply
? Two 12-bit, one-second A/D converters (up to 16 channels)
– Voltage conversion range: 0–3.6 V
– Ability to sample twice and hold
– Sensor for temperature
? DMA (Distribution Management Association)
– DMA controller with 7 channels
– Timers, ADCs, SPIs, I2Cs, and USARTs are among the peripherals supported.
? Up to 51 I/O ports with high throughput
– 26/37/51 I/Os, all of which may be mapped to 16 external interrupt vectors and are practically all V-tolerant
? Mode debug
– JTAG interfaces and serial wire debug (SWD)
? There are six timers in total.
– Two 16-bit timers, each with up to four IC/OC/PWM or pulse counter inputs as well as a quadrature (incremental) encoder
– 16-bit PWM timer with deadtime generation and emergency stop for motor control
