Name: BZV55-C18,135
Brand: Nexperia USA Inc.
SKU: BZV55-C18,135
Price: 0.23000 USD
Availability: InStock

new-10%

BZV55-C18,135

Manufacturer part number:BZV55-C18,135

Manufacturer:Nexperia USA Inc.

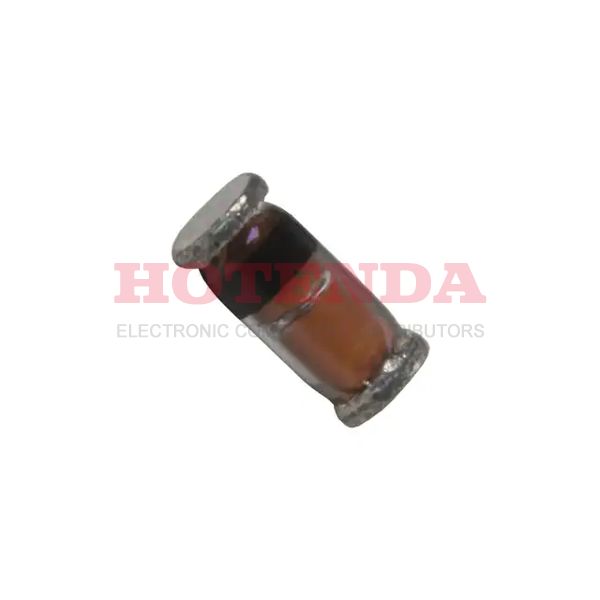

Description:ZENER DIODE 45Ohm ±5% 17.95V 50nA @ 12.6V -65°C~200°C 500mW 2 Terminations DO-213AC, MINI-MELF, SOD-80

Case Package:SOT-23

Datasheet:BZV55-C18,135 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	DO-213AC, MINI-MELF, SOD-80
Number of Pins	2
Diode Element Material	SILICON
Operating Temperature	-65°C~200°C
Packaging	Tape & Reel (TR)
Published	2010
Tolerance	±5%
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
HTS Code	8541.10.00.50
Max Power Dissipation	500mW
Terminal Position	END
Terminal Form	WRAP AROUND
Peak Reflow Temperature (Cel)	260
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	BZV55C18
Pin Count	2
Number of Elements	1
Polarity	UNIDIRECTIONAL
Impedance	45Ohm
Element Configuration	Single
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	50nA @ 12.6V
Power Dissipation	500mW
Voltage - Forward (Vf) (Max) @ If	900mV @ 10mA
Case Connection	ISOLATED
Max Reverse Leakage Current	50nA
Impedance-Max	45Ohm
Test Current	5mA
Reference Voltage	18V
Voltage - Zener (Nom) (Vz)	18V
Zener Voltage	17.95V
Voltage Tol-Max	5%
Voltage Tolerance	5%
ESD Protection	No
RoHS Status	ROHS3 Compliant

BZV55-C18,135 Product Details

BZV55-C18,135 Overview

This electrical device requires reverse leakage current of 50nA @ 12.6V.Tol is the maximum voltage that can be supplied (5%).Reverse leakage current reaches 50nA at its maximum.The maximum voltage - Zener (Nom) is reduced to 18V during operation.Zener single diode reaches 900mV @ 10mA when Zener single diode is supplied wZener single diodeh the maximum voltage - Forward (Vf).
