Name: SZMMSZ5268BT1G
Brand: ON Semiconductor
SKU: SZMMSZ5268BT1G
Price: 0.05000 USD
Availability: InStock

new-10%

SZMMSZ5268BT1G

Manufacturer part number:SZMMSZ5268BT1G

Manufacturer:ON Semiconductor

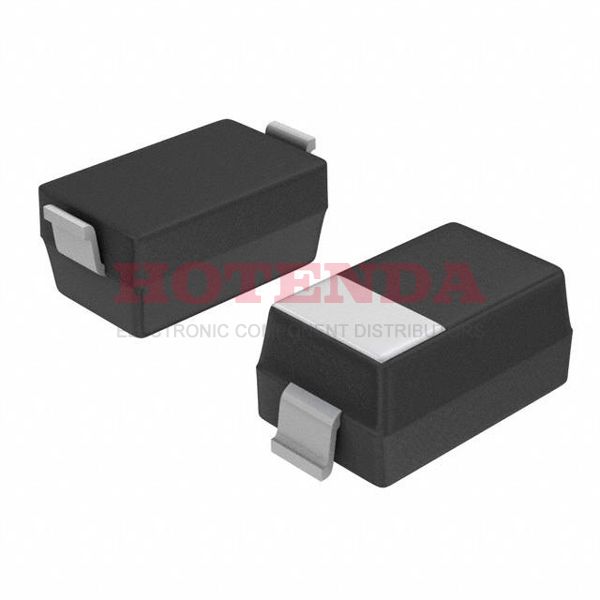

Description:ZENER DIODE 330Ohm ±5% 82V 100nA @ 62V -55°C~150°C 500mW 2 Terminations SOD-123

Case Package:SOT-23

Datasheet:SZMMSZ5268BT1G Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 4 days ago)
Factory Lead Time	8 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SOD-123
Diode Element Material	SILICON
Operating Temperature	-55°C~150°C
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q101
Published	2012
Tolerance	±5%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
HTS Code	8541.10.00.50
Max Power Dissipation	500mW
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
JESD-30 Code	R-PDSO-G2
Number of Elements	1
Polarity	UNIDIRECTIONAL
Impedance	330Ohm
Element Configuration	Single
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	100nA @ 62V
Voltage - Forward (Vf) (Max) @ If	900mV @ 10mA
Impedance-Max	330Ohm
Reference Voltage	82V
Forward Voltage	900mV
Zener Voltage	82V
Voltage Tol-Max	5%
Peak Reverse Current	100nA
Voltage Tolerance	5%
Zener Current	1.5mA
Height	1.17mm
Length	2.69mm
Width	1.6mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

SZMMSZ5268BT1G Product Details

SZMMSZ5268BT1G Overview

The reverse leakage current needed to power this electric device is 100nA @ 62V.Zener single diode is a maximum voltage (Tol) that can be supplied at 5%.A zener current of 1.5mA makes it highly flexible in terms of design.For its operation, the maximum voltage - Forward (Vf) 900mV @ 10mA is supplied.This device requires a peak reverse voltage of 100nA to function fully.
