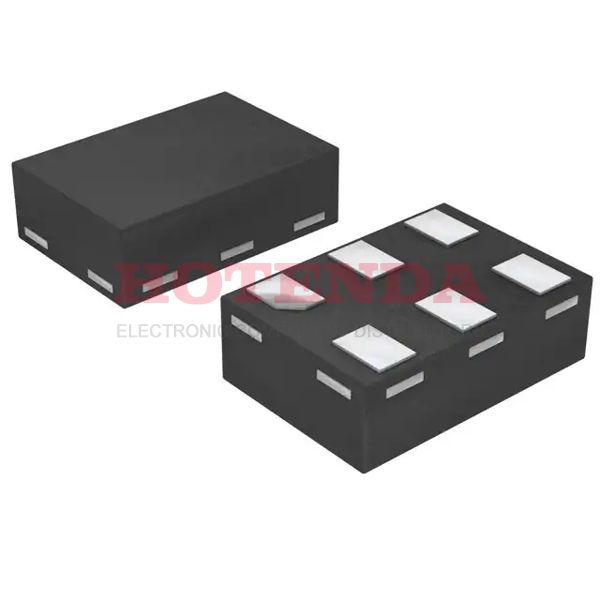

74LVC2G14GM,132 Overview
Packed in 6-XFDFN, the part is convenient for shipping overseas. Advanced packaging method Tape & Reel (TR) is used to provide high reliability. It works based on the Inverter logic principle. To ensure the part's full function, a voltage of 1.65V~5.5V is needed. Extended operating temperature around -40°C~125°C. The part is mounted in Surface Mount. The high and low state of output current is 32mA 32mA. It comes from the 74LVC series. There are 6 terminations totally. The part has 2 functions that significantly boost the user experience. It represents the LVC/LCX/Z product family. If you are looking for device variants, try search with 74LVC2G14. 6 pins are injected into the part body. Surface Mount mounted, this logic device is widely used in many applications. Please refer to the datasheets for 6 pins functions. In the quiescent state, the part has 40μA current flowing through it. This device is composed of 2 circuits. The supply voltage should not exceed 5.5V. The maximum current in standby mode is 4μA. It features Schmitt Trigger.
74LVC2G14GM,132 Features
Inverter Logic Type
Operating Temperature: -40°C~125°C
LVC/LCX/Z Family
Quiescent Current: 40μA
74LVC2G14GM,132 Applications
There are a lot of Nexperia USA Inc.
74LVC2G14GM,132 Gates and Inverters applications.
- Air conditioner
- Home theater
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
