74LVC2G86HK3-7 Overview

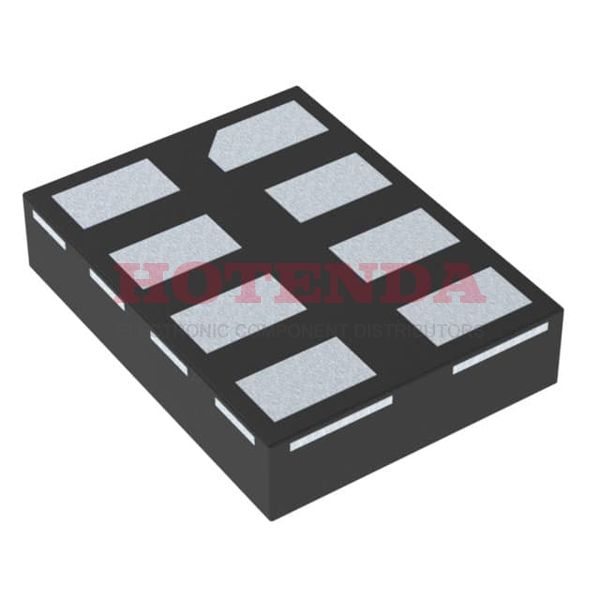

Due to its 8-XFDFN packaging, the part is convenient for international shipping. High reliability is achieved by using advanced packaging method Tape & Reel (TR). XOR (Exclusive OR) logic is the basis of its operation. This part needs a voltage of 1.65V~5.5V to function properly. An extended operating temperature of -40°C~125°C degrees Celsius. Part Surface Mount is mounted. High and low output current states are both 32mA 32mA. The series 74LVC contains it. A total of 8 terminations have been recorded. It has 2 functions that enhance user experience significantly. In LVC/LCX/Z, this chip plays an important role. It supports inputs of 2. A 2 circuit is present in this device. To supply the device, a voltage of 1.65V must be applied. It reaches 5.5V when the supply voltage is maximal (Vsup). 40μA is the maximum current in standby mode.
74LVC2G86HK3-7 Features
XOR (Exclusive OR) Logic Type
Operating Temperature: -40°C~125°C
LVC/LCX/Z Family
74LVC2G86HK3-7 Applications
There are a lot of Diodes Incorporated
74LVC2G86HK3-7 Gates and Inverters applications.
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
