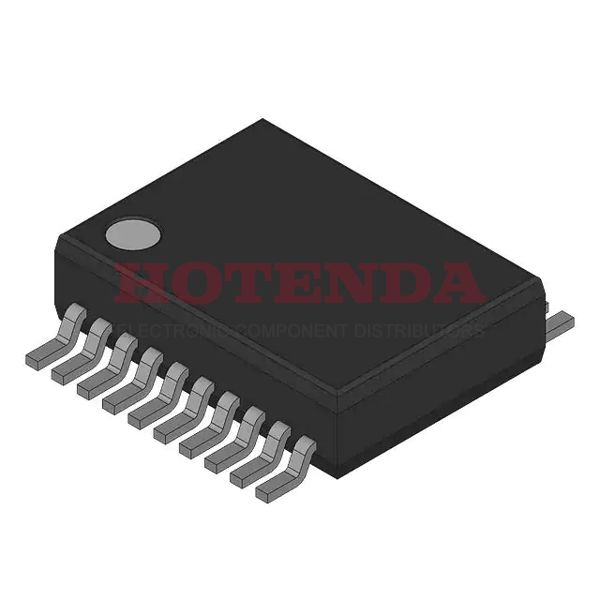

74LVC273DB,112 Overview
It is embeded in 20-SSOP (0.209, 5.30mm Width) case. The package Tubecontains it. The output it is configured with uses Non-Inverted. This trigger is configured to use Positive Edge. The electronic part is mounted in the way of Surface Mount. The supply voltage is set to 1.65V~3.6V. A temperature of -40°C~125°C TAis considered to be the operating temperature. This electronic flip flop is of type D-Type. This type of FPGA is a part of the 74LVC series. Its output frequency should not exceed 230MHz Hz. A total of 1elements are contained within it. A total of 20terminations have been recorded. This D latch belongs to the family of 74LVC273. It is powered from a supply voltage of 1.8V. The input capacitance of this JK flip flopis 5pF farads. Devices in the LVC/LCX/Zfamily are electronic devices. A part of the electronic system is mounted in the way of Surface Mount. A total of 20pins are provided on this board. This device has Positive Edgeas its clock edge trigger type. It is designed with 8bits. It reaches 3.6Vwhen the supply voltage is maximal (Vsup). This input has 8lines in it. Quiescent current is consumed by the D latch in the amount of 10μA.
74LVC273DB,112 Features
Tube package
74LVC series
20 pins
8 Bits
74LVC273DB,112 Applications
There are a lot of Nexperia USA Inc. 74LVC273DB,112 Flip Flops applications.
- Memory
- Clock pulse
- Automotive
- Instrumentation
- Reduced system switching noise
- Storage Registers
- Power down protection
- Communications
- Consumer
- Pattern generators
