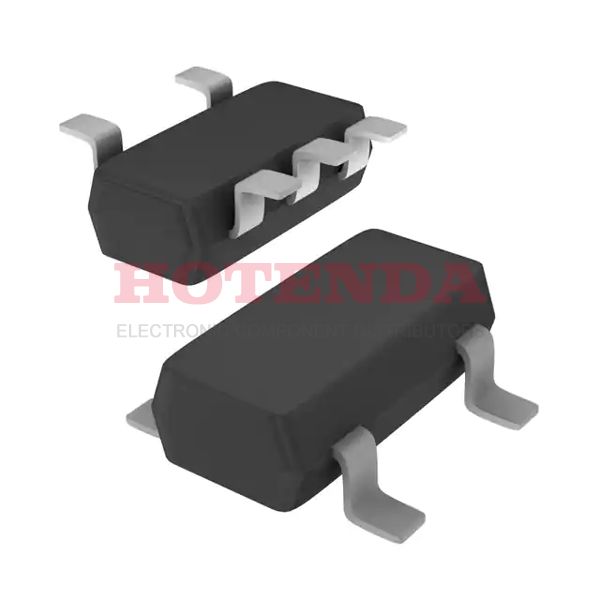

74LVC1G08GV-Q100,1 Overview
The part can be shipped overseas conveniently because it is packaged in SC-74A, SOT-753. In order to provide high reliability, an advanced packaging method Tape & Reel (TR) is used. As a result, it works on the principle of AND Gate. The part must have a voltage of 1.65V~5.5V in order to function properly. Operating temperature around -40°C~125°C extended. Surface Mount is the mounting position of the part. In the low and high states of output current, the current is 32mA 32mA. This is part of the 74LVC series. In total, there are 5 terminations. 1 functions in the part enhance the user experience significantly. The chip is part of the LVC/LCX/Z family. Use 74LVC1G08 to search for device variants. There are 5 pins injected into the part body. Many applications use this logic device with Surface Mount mounting. The functions of 5 pins can be found in the datasheets. There are 2 inputs on this part. When the part is quiescent, 200μA current flows through it. The device has 1 outputs. In standby mode, the maximum current is 4μA.
74LVC1G08GV-Q100,1 Features
AND Gate Logic Type
Operating Temperature: -40°C~125°C
LVC/LCX/Z Family
Quiescent Current: 200μA
74LVC1G08GV-Q100,1 Applications
There are a lot of Nexperia USA Inc.
74LVC1G08GV-Q100,1 Gates and Inverters applications.
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
