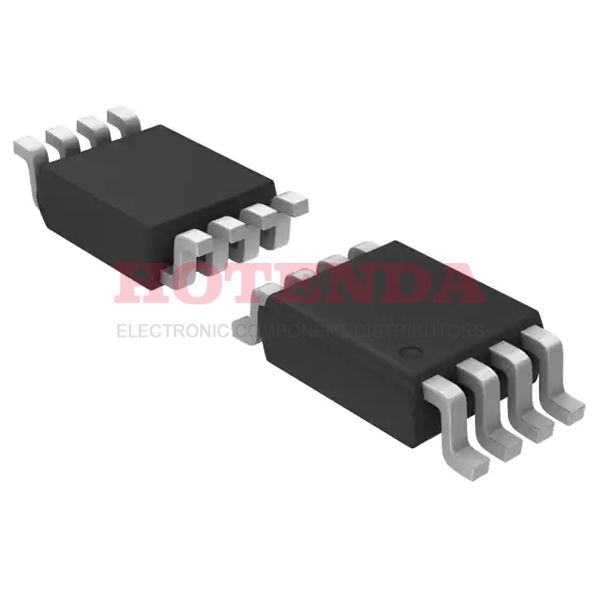

NLV27WZ86USG Overview
The part can be shipped overseas conveniently because it is packaged in 8-VFSOP (0.091, 2.30mm Width). In order to provide high reliability, an advanced packaging method Tape & Reel (TR) is used. As a result, it works on the principle of XOR (Exclusive OR). The part must have a voltage of 1.65V~5.5V in order to function properly. Operating temperature around -40°C~125°C extended. Surface Mount is the mounting position of the part. In the low and high states of output current, the current is 32mA 32mA. This is part of the Automotive, AEC-Q100, 27WZ series. In total, there are 8 terminations. 2 functions in the part enhance the user experience significantly. The chip is part of the LVC/LCX/Z family. Many applications use this logic device with Surface Mount mounting. The functions of 8 pins can be found in the datasheets. When the part is quiescent, 1μA current flows through it. A total of 2 circuits make up this device. Devices require a minimum voltage of 1.65V. As soon as Vsup reaches 5.5V, the maximal supply voltage (Vsup) is reached.
NLV27WZ86USG Features
XOR (Exclusive OR) Logic Type
Operating Temperature: -40°C~125°C
LVC/LCX/Z Family
Quiescent Current: 1μA
NLV27WZ86USG Applications
There are a lot of ON Semiconductor
NLV27WZ86USG Gates and Inverters applications.
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
