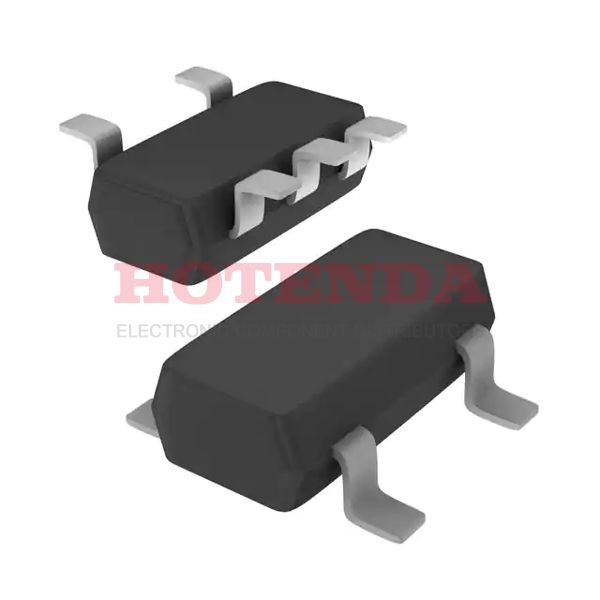

74HCT1G08GV-Q100,1 Overview
The part can be shipped overseas conveniently because it is packaged in SC-74A, SOT-753. In order to provide high reliability, an advanced packaging method Tape & Reel (TR) is used. As a result, it works on the principle of AND Gate. The part must have a voltage of 4.5V~5.5V in order to function properly. Operating temperature around -40°C~125°C extended. Surface Mount is the mounting position of the part. In the low and high states of output current, the current is 2mA 2mA. This is part of the Automotive, AEC-Q100, 74HCT series. In total, there are 5 terminations. 1 functions in the part enhance the user experience significantly. The chip is part of the HCT family. Use 74HCT1G08 to search for device variants. There are 5 pins injected into the part body. Many applications use this logic device with Surface Mount mounting. The functions of 5 pins can be found in the datasheets. There are 2 inputs on this part. When the part is quiescent, 20μA current flows through it. The device has 1 outputs. It is specified that the operating supply voltage for the chip will be 5V volts.
74HCT1G08GV-Q100,1 Features
AND Gate Logic Type
Operating Temperature: -40°C~125°C
HCT Family
Quiescent Current: 20μA
74HCT1G08GV-Q100,1 Applications
There are a lot of Nexperia USA Inc.
74HCT1G08GV-Q100,1 Gates and Inverters applications.
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
