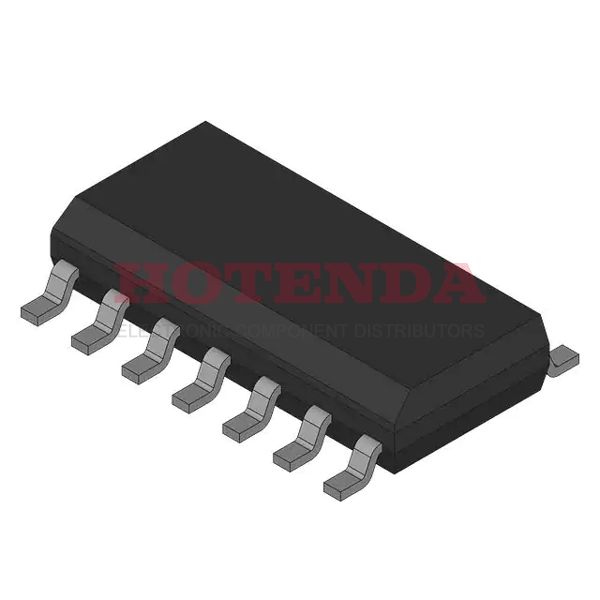

74HCT10D,652 Overview
The part is convenient to ship overseas because it is packed in a 14-SOIC (0.154, 3.90mm Width). The advanced packaging method Tube provides high reliability. A NAND Gate logic principle governs its operation. Voltage 4.5V~5.5V is needed to ensure the part's full functionality. Operational temperature extended around -40°C~125°C. Mounted in Surface Mount. Output current is 4mA 4mA in the high and low states. 74HCT is the series it belongs to. The total number of terminations is 14. There are 3 functions that significantly improve the user experience. As part of HCT, this chip is used. Try searching with 74HCT10 to find device variants. A total of 14 pins are injected into the body of the part. Logic devices with Surface Mount mounting are widely used in many applications. Datasheets for functions of 14 pins are available. Quiescent parts have 2μA current flowing through them. There is 50pF load capacitance on the part. Its output current is rated at 4mA. There are 1 outputs on the device. There is a specified operating supply voltage for the chip of 5V volts. 3 gates are used in logical operations.
74HCT10D,652 Features
NAND Gate Logic Type
Operating Temperature: -40°C~125°C
HCT Family
Quiescent Current: 2μA
Output Current: 4mA
3 Gates
74HCT10D,652 Applications
There are a lot of Nexperia USA Inc.
74HCT10D,652 Gates and Inverters applications.
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
