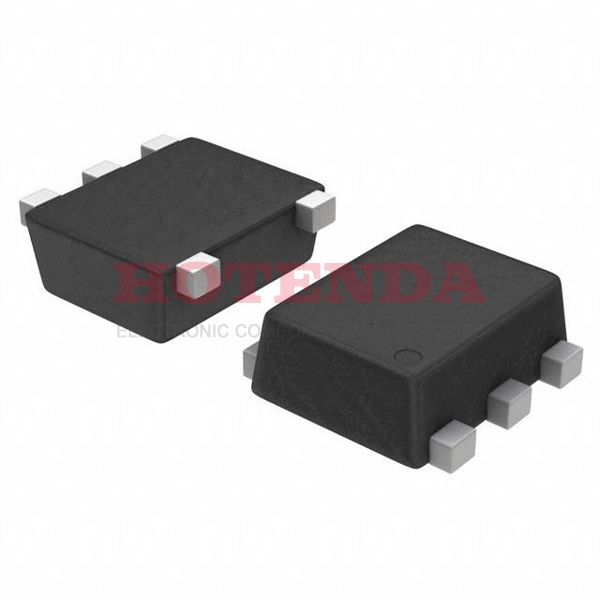

NL17SZ00P5T5G Overview
As the part is packed in SOT-953, international shipping is convenient. A high level of reliability can be achieved through the use of an advanced packaging method Tape & Reel (TR). This logic works according to the NAND Gate principle. Ensure the part's full functionality by setting the voltage to 1.65V~5.5V. Operating temperature extended to -55°C~125°C. It is mounted in position Surface Mount. 32mA 32mA is the output current's high and low states. 17SZ is its series number. Total terminations are 5. Users will benefit significantly from 1 functions in this part. There is a chip like this in LVC/LCX/Z. Trying searching with 17SZ00 will yield device variants. The part body receives 5 pins. The logic device can be mounted on the Surface Mount axis and is used in a wide range of applications. Datasheets for 5 pin functions are available upon request. Inputs for the part are set to 2. Quiescent parts carry 1μA current. There are 1 circuits in this device. In addition to this, it is packed with the industry TAPE AND REEL method. A 3.3V power supply is specified in the datasheet for this part.
NL17SZ00P5T5G Features
NAND Gate Logic Type
Operating Temperature: -55°C~125°C
LVC/LCX/Z Family
Quiescent Current: 1μA
NL17SZ00P5T5G Applications
There are a lot of ON Semiconductor
NL17SZ00P5T5G Gates and Inverters applications.
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
- Massager
- Fan
