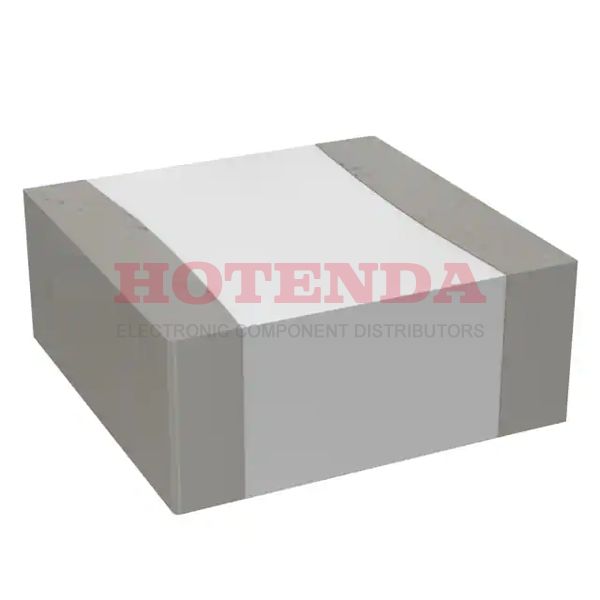

GQM22M5C2H560FB01L

new-10%

Manufacturer part number:GQM22M5C2H560FB01L

Manufacturer:Murata Electronics

Description:Multilayer Ceramic Capacitors MLCC - SMD/SMT 1111 56pF 500volts C0G +/-1%

Case Package:SOT-23

Datasheet:GQM22M5C2H560FB01L Datasheet

RoHs Status:non-compliant

Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Lifecycle Status	IN PRODUCTION (Last Updated: 3 weeks ago)
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	1111 (2828 Metric)
Terminal Shape	WRAPAROUND
Dielectric Material	CERAMIC
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	GQM
Size / Dimension	0.110Lx0.110W 2.80mmx2.80mm
Tolerance	±1%
JESD-609 Code	e3
Feature	High Q, Low Loss
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	SMD/SMT
ECCN Code	EAR99
Temperature Coefficient	C0G NP0
Terminal Finish	Tin (Sn) - with Nickel (Ni) barrier
Applications	RF, Microwave, High Frequency
Capacitance	56pF
Voltage - Rated DC	500V
Packing Method	TR, EMBOSSED, 7 INCH
Case Code (Metric)	2828
Case Code (Imperial)	1111
Capacitor Type	CERAMIC CAPACITOR
Temperature Characteristics Code	C0G
Multilayer	Yes
Thickness (Max)	0.053 1.35mm
Thickness	1.3462mm
RoHS Status	ROHS3 Compliant
