12067A120JAT2A

  • 12067A120JAT2A
  • 12067A120JAT2A

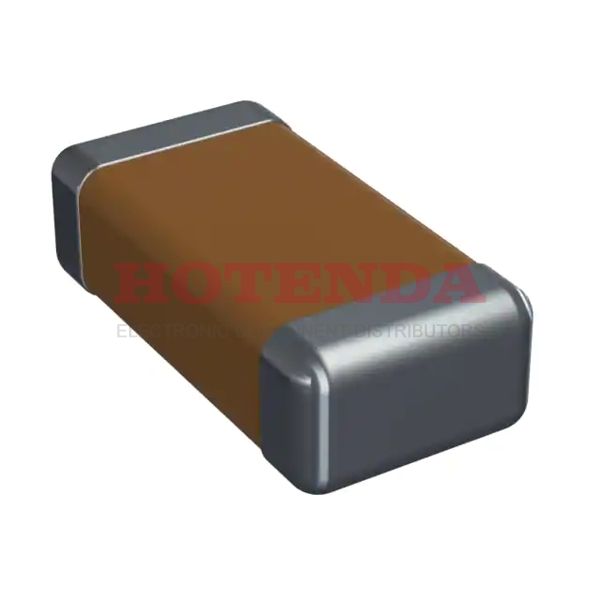

12067A120JAT2A

12067A120JAT2A

AVX Corporation

12067A120JAT2A datasheet pdf and Ceramic Capacitors product details from AVX Corporation stock available on our website

SOT-23

12067A120JAT2A Datasheet

non-compliant

In-Stock: 0 items
Specifications
Name Value
Type Parameter
Factory Lead Time 16 Weeks
Contact Plating Tin
Mount Surface Mount
Mounting Type Surface Mount, MLCC
Package / Case 1206 (3216 Metric)
Terminal Shape WRAPAROUND
Number of Pins 2
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2004
Size / Dimension 0.126Lx0.063W 3.20mmx1.60mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Temperature Coefficient C0G NP0
Applications General Purpose
Capacitance 12pF
Voltage - Rated DC 500V
Packing Method TR, PAPER, 7 INCH
Depth 1.6mm
Case Code (Metric) 3216
Case Code (Imperial) 1206
Capacitor Type CERAMIC CAPACITOR
Dielectric C0G
Temperature Characteristics Code C0G
Multilayer Yes
Height 500μm
Thickness (Max) 0.037 0.94mm
Thickness 939.8μm
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Pricing & Ordering
Quantity Unit Price Ext. Price
12067A120JAT2A Product Details

12067A120JAT2A Overview


This device's program size/dimension is 0.126Lx0.063W 3.20mmx1.60mm.The temperature coefficient of resistance is generally defined as?the change in electrical resistance of a substance with respect to per degree change in temperature, and its coefficient is C0G NP0.With a voltage of 500V, it can operate.

12067A120JAT2A Features


a size/dimension of 0.126Lx0.063W 3.20mmx1.60mm
with C0G NP0 being the highest temperature coefficient
with the voltage - Rated DC of 500V

12067A120JAT2A Applications


There are a lot of AVX Corporation 12067A120JAT2A applications of ceramic capacitors.

  • General electronic equipment
  • Servers, PCs, tablets
  • Mobile devices
  • Power supply circuit
