Name: 803-43-010-10-003000
Brand: Mill-Max Manufacturing Corp.
SKU: 803-43-010-10-003000
Price: 11.82000 USD
Availability: InStock

new

803-43-010-10-003000

Manufacturer part number:803-43-010-10-003000

Manufacturer:Mill-Max Manufacturing Corp.

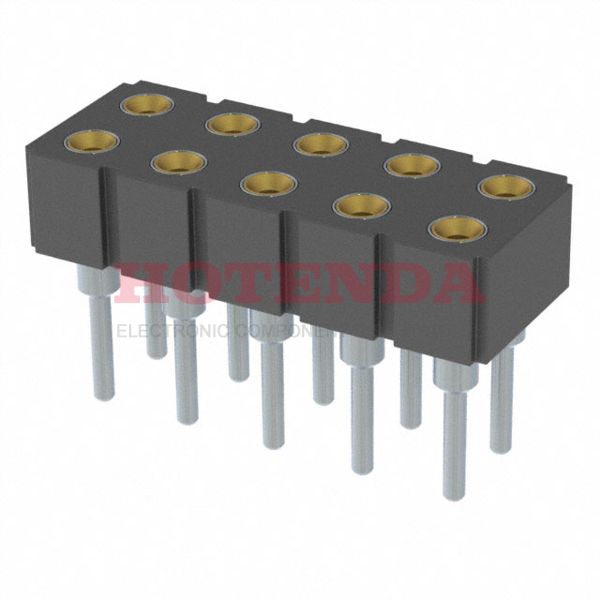

Description:2 Rows Receptacle Solder Beryllium Copper Through Hole Bulk Gold Polycyclohexylenedimethylene Terephthalate (PCT), Polyester 10 Positions Female Socket

Case Package:SOT-23

Datasheet:803-43-010-10-003000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	803
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	10
Number of Rows	2
Additional Feature	LOW PROFILE
HTS Code	8536.90.40.00
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	4.5A
Insulation Height	0.165 4.20mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.125 3.18mm
Contact Finish - Post	Tin
UL Flammability Code	94V-0
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	200.0μin 5.08μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

803-43-010-10-003000 Product Details

803-43-010-10-003000 Overview

It comes in Receptacle packaging.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the 803 Series of products.In addition, there are other features such as LOW PROFILE, to mention only a few.The device runs in -55°C~125°C Operating Temperature.
