Name: 316-43-110-41-008000
Brand: Mill-Max Manufacturing Corp.
SKU: 316-43-110-41-008000
Price: 2.52000 USD
Availability: InStock

new-10%

316-43-110-41-008000

Manufacturer part number:316-43-110-41-008000

Manufacturer:Mill-Max Manufacturing Corp.

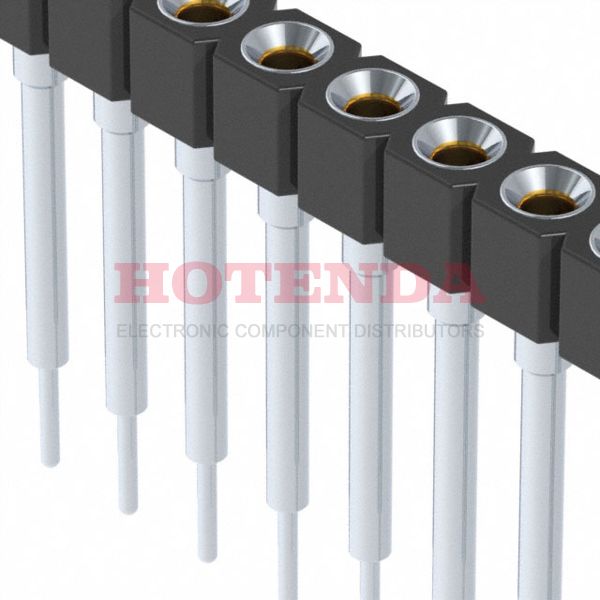

Description:1 Rows Elevated Socket Solder Beryllium Copper Through Hole Bulk Gold Polycyclohexylenedimethylene Terephthalate (PCT), Polyester 10 Positions Female Socket

Case Package:SOT-23

Datasheet:316-43-110-41-008000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Beryllium Copper
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Housing Material	PLASTIC
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	316
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Elevated Socket
Number of Positions	10
Number of Rows	1
Additional Feature	SIP
HTS Code	8536.90.40.00
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3A
Insulation Height	0.472 12.00mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Length - Post	0.118 3.00mm
Number of Contacts	10
Contact Finish - Post	Tin
Device Socket Type	IC SOCKET
Contact Finish Thickness - Mating	30.0μin 0.76μm
Contact Finish Thickness - Post	200.0μin 5.08μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
Lead Free	Contains Lead

316-43-110-41-008000 Product Details

316-43-110-41-008000 Overview

Currently, it is packaged in Elevated Socket.The mounting type of the device is Through Hole.A Bulk case is used to package the product.A product of the 316 Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as SIP, to name a few.Through Hole represents the mounting point for the part.-55°C~125°C Operating Temperature is the default operating temperature for the device.
