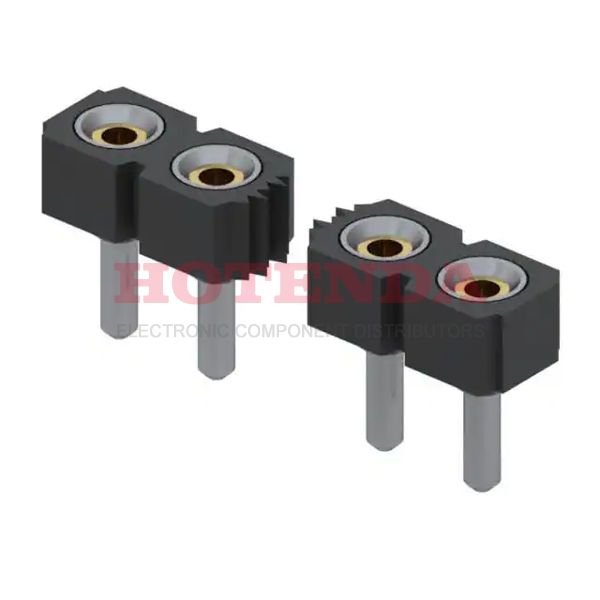

Name: 315-47-106-41-001000
Brand: Mill-Max Manufacturing Corp.
SKU: 315-47-106-41-001000
Price: 11.73000 USD
Availability: InStock

new

315-47-106-41-001000

Manufacturer part number:315-47-106-41-001000

Manufacturer:Mill-Max Manufacturing Corp.

Description:315-47-106-41-001000 datasheet pdf and Rectangular Connectors - Headers, Receptacles, Female Sockets product details from Mill-Max Manufacturing Corp. stock available on our website

Case Package:SOT-23

Datasheet:315-47-106-41-001000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Beryllium Copper
Mounting Type	Through Hole
Contact Shape	Circular
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2017
Series	315
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	6
Number of Rows	1
Voltage - Rated	100V 150VDC
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	3A
Insulation Height	0.110 2.79mm
Style	Board to Board
Number of Positions Loaded	All
Reach Compliance Code	compliant
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Contact Length - Post	0.108 2.75mm
Contact Finish - Post	Tin
Device Socket Type	IC SOCKET
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	200.0μin 5.08μm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

315-47-106-41-001000 Product Details

315-47-106-41-001000 Overview

A Receptacle package is included with it.Through Hole is the mounting type for the device.This product is packaged in a case marked Bulk.There is a product in the 315 Series.This device operates at a temperature of -55°C~125°C.
