Name: APT12080JVR
Brand: Microsemi Corporation
SKU: APT12080JVR
Availability: InStock

new-10%

APT12080JVR

Manufacturer part number:APT12080JVR

Manufacturer:Microsemi Corporation

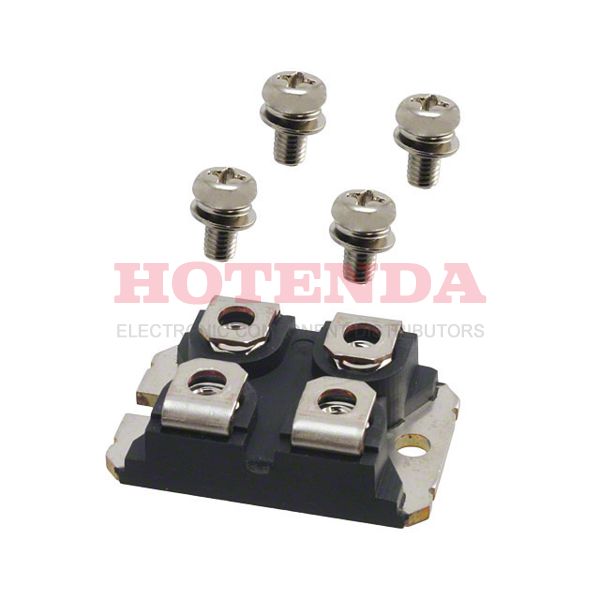

Description:MOSFET N-CH 1200V 15A ISOTOP

Case Package:SOT-23

Datasheet:APT12080JVR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Screw
Mounting Type	Chassis Mount
Package / Case	SOT-227-4, miniBLOC
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tube
Published	1999
Series	POWER MOS V®
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	4
ECCN Code	EAR99
Additional Feature	UL RECOGNIZED
Subcategory	FET General Purpose Power
Technology	MOSFET (Metal Oxide)
Terminal Position	UPPER
Terminal Form	UNSPECIFIED
Pin Count	4
JESD-30 Code	R-PUFM-X4
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	450W Tc
Operating Mode	ENHANCEMENT MODE
Case Connection	ISOLATED
Turn On Delay Time	16 ns
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	800m Ω @ 7.5A, 10V
Vgs(th) (Max) @ Id	4V @ 2.5mA
Input Capacitance (Ciss) (Max) @ Vds	7800pF @ 25V
Current - Continuous Drain (Id) @ 25°C	15A Tc
Gate Charge (Qg) (Max) @ Vgs	485nC @ 10V
Rise Time	12ns
Drain to Source Voltage (Vdss)	1200V
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±30V
Fall Time (Typ)	12 ns
Turn-Off Delay Time	59 ns
Continuous Drain Current (ID)	15A
Gate to Source Voltage (Vgs)	30V
Drain-source On Resistance-Max	0.8Ohm
Pulsed Drain Current-Max (IDM)	60A
DS Breakdown Voltage-Min	1200V
Avalanche Energy Rating (Eas)	2500 mJ
Radiation Hardening	No
RoHS Status	RoHS Compliant
Lead Free	Lead Free
