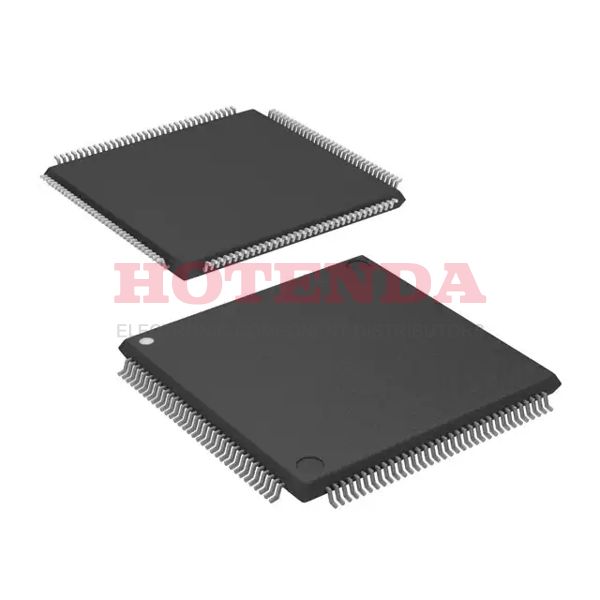

A54SX08-2TQG144I Overview
As part of the 144-LQFP package, it is included. FIELD PROGRAMMABLE GATE ARRAY is the component of this type of FPGA. A total of 113 I/Os allow data to be transferred in a more coherent manner. The basic building blocks of logic contain 768 logic elements/cells. Fpga chips is powered from a supply voltage of 3.3V. With a Surface Mount connector, this FPGA module can be attached to the development board. With a supply voltage of 3V~3.6V 4.75V~5.25V, this device operates with ease. The SX Series is one of the types of FPGAs that belong to this type. Operating temperatures should be maintained within the -40°C~85°C TA range at all times when the unit is in use. A model of this FPGA is contained in Tray for the purpose of saving space. In total, there are a total of 144 terminations on fpga chips. Parts related to this part can be found using its base part number A54SX08. The device has 144 pins which are included in the design. According to its specifications, this FPGA will be able to work fantastically as long as it is mounted in Surface Mount. Designers can fully utilize its flexibility with 5V supply voltage. The basic building block of this system consists of 12000 gates. In order to store and transfer data, a total of 256 registers are used. In order to make the architecture work, 768 CLBs are used. The high efficiency of this device is provided by its 320MHz-frequency operation. In order to implement this design, 8000 equivalent gates are used in the FPGA.
A54SX08-2TQG144I Features
113 I/Os
144 LABs/CLBs
256 registers
Operating from a frequency of 320MHz
A54SX08-2TQG144I Applications
There are a lot of Microsemi Corporation A54SX08-2TQG144I FPGAs applications.
- Telecommunication
- Device controllers
- Data center hardware accelerators
- Security systems
- Space Applications
- Medical imaging
- Automotive driver's assistance
- Electronic Warfare
- DO-254
- Audio
