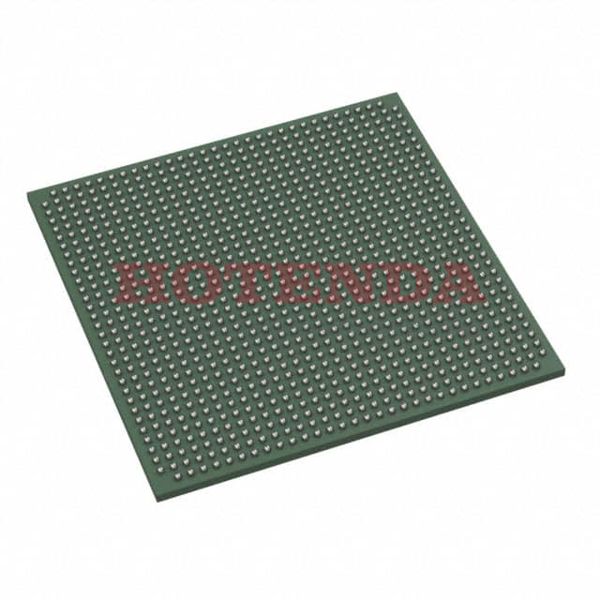

LFSCM3GA40EP1-5FFN1020I

LFSCM3GA40EP1-5FFN1020I

LFSCM3GA40EP1-5FFN1020I

Lattice Semiconductor Corporation

1.2V V 3.82mm mm FPGAs SCM Series 1020-BBGA, FCBGA 1mm mm

SOT-23

LFSCM3GA40EP1-5FFN1020I Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 1020-BBGA, FCBGA
Number of Pins 1020
Operating Temperature-40°C~105°C TJ
PackagingTray
Published 2008
Series SCM
JESD-609 Code e1
Part StatusObsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)
HTS Code8542.39.00.01
Subcategory Field Programmable Gate Arrays
Technology CMOS
Voltage - Supply 0.95V~1.26V
Terminal Position BOTTOM
Terminal FormBALL
Peak Reflow Temperature (Cel) 245
Supply Voltage 1.2V
Terminal Pitch1mm
[email protected] Reflow Temperature-Max (s) 40
Base Part Number LFSCM3GA40
Number of Outputs 562
Qualification StatusNot Qualified
Operating Supply Voltage1.2V
Power Supplies1.21.2/3.32.5V
Number of I/O 562
RAM Size 497.5kB
Programmable Logic TypeFIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 40000
Total RAM Bits 4075520
Max Frequency 700MHz
Number of LABs/CLBs 10000
Number of CLBs 216
Number of Logic Cells40400
Height Seated (Max) 3.82mm
Length 33mm
Width 33mm
RoHS StatusRoHS Compliant
In-Stock:3654 items

LFSCM3GA40EP1-5FFN1020I Product Details

LFSCM3GA40EP1-5FFN1020I Overview


The package that contains this software is called 1020-BBGA, FCBGA. Fpga chips consists of FIELD PROGRAMMABLE GATE ARRAY elements. 562 I/Os are available for transferring data more efficiently. In order to construct a fundamental building block, 40000 logic elements/cells are required. The supply voltage is 1.2V volts. This FPGA part belongs to the family of Field Programmable Gate Arrays. Using a Surface Mount connector, you can mount this FPGA module on the development board. A supply voltage of 0.95V~1.26V is needed in order for fpga chips to operate. It is a type of FPGA belonging to the SCM seies. In order to ensure a safe and efficient operation, it is important to maintain a temperature within -40°C~105°C TJ at all times. In this device, there are 562 outputs that can be used. Fpga chips is designed to maximiTraye space efficiency by containing the FPGA model in Tray. As far as the RAM bits are concerned, this device offers you a total of 4075520. Parts related to this part can be found using its base part number LFSCM3GA40. For the program to work properly, the RAM si497.5kBe of this FPGA module must reach 497.5kB GB in order to ensure normal operation. The device is designed with 1020 pins in total. The FPGA is built as an array of 10000 latches or CLBs. Providing that this FPGA is mounted in Surface Mount, it will be able to perform according to its specifications in a flawless manner. Design engineers can fully take advantage of its flexibility when operating at 1.2V supply voltage. Fpga electronics operates from a 1.21.2/3.32.5V power supply. For its architecture, 216 CLB modules are used. This FPGA can get as fast as 700MHz. For the building block, it incorporates 40400 logic cells that are used to make it work.

LFSCM3GA40EP1-5FFN1020I Features


562 I/Os
Up to 4075520 RAM bits
1020 LABs/CLBs

LFSCM3GA40EP1-5FFN1020I Applications


There are a lot of Lattice Semiconductor Corporation LFSCM3GA40EP1-5FFN1020I FPGAs applications.

  • Automation
  • Automotive
  • Industrial IoT
  • Wired Communications
  • Digital signal processing
  • Audio
  • ASIC prototyping
  • Image processing
  • Automotive Applications
  • DO-254
