Name: 1N2977RB
Brand: Microsemi Corporation
SKU: 1N2977RB
Price: 6.50000 USD
Availability: InStock

new-10%

1N2977RB

Manufacturer part number:1N2977RB

Manufacturer:Microsemi Corporation

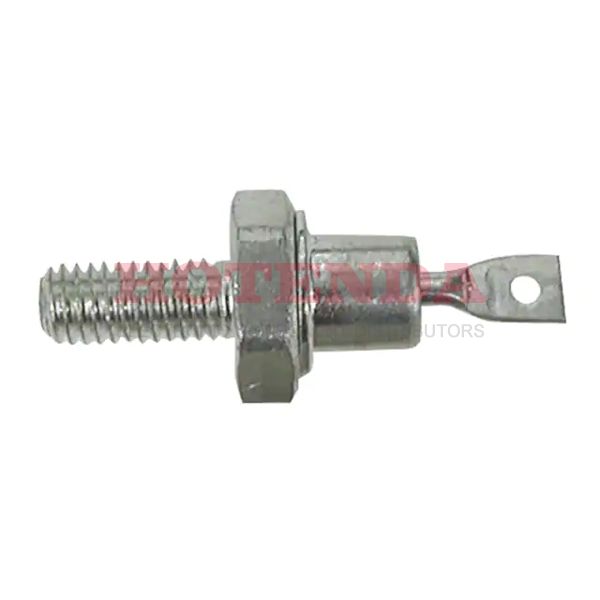

Description:ZENER DIODE 3Ohm ±5% 10μA @ 9.9V -65°C~175°C 1 Terminations DO-203AA, DO-4, Stud

Case Package:SOT-23

Datasheet:1N2977RB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	IN PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time	30 Weeks
Mounting Type	Chassis, Stud Mount
Package / Case	DO-203AA, DO-4, Stud
Surface Mount	NO
Diode Element Material	SILICON
Operating Temperature	-65°C~175°C
Packaging	Bulk
Published	1999
Tolerance	±5%
JESD-609 Code	e0
Pbfree Code	no
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	1
ECCN Code	EAR99
Terminal Finish	TIN LEAD
HTS Code	8541.10.00.50
Terminal Position	UPPER
Terminal Form	SOLDER LUG
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	1N2977
Pin Count	1
JESD-30 Code	O-MUPM-D1
Qualification Status	Not Qualified
Number of Elements	1
Polarity	UNIDIRECTIONAL
Configuration	SINGLE
Power Dissipation-Max	10W
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	10μA @ 9.9V
Voltage - Forward (Vf) (Max) @ If	1.5V @ 2A
Case Connection	CATHODE
Power - Max	10W
Impedance-Max	3Ohm
Reference Voltage	13V
Voltage - Zener (Nom) (Vz)	13V
Voltage Tol-Max	5%
Working Test Current	190mA
Dynamic Impedance-Max	3Ohm
RoHS Status	Non-RoHS Compliant

1N2977RB Product Details

1N2977RB Overview

The reverse leakage current for this electrical device is 10μA @ 9.9V.Voltage (Tol) 5% is the maximum possible.In the course of operation, Zener (Nom) drops to zero voltage.This device should be operated with a 190mA working test voltage.This value reaches 1.5V @ 2A when the maximum Forward voltage (Vf) is applied.
