Name: SMAZ5929B-M3/61
Brand: Vishay Semiconductor Diodes Division
SKU: SMAZ5929B-M3/61
Price: 0.11000 USD
Availability: InStock

new-10%

SMAZ5929B-M3/61

Manufacturer part number:SMAZ5929B-M3/61

Manufacturer:Vishay Semiconductor Diodes Division

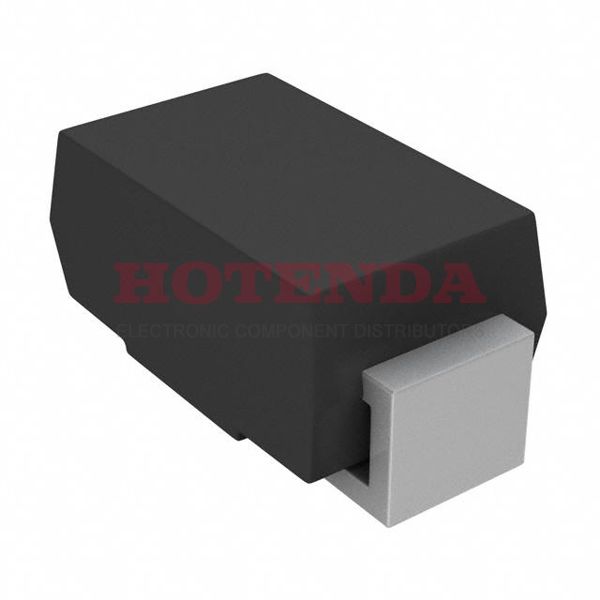

Description:ZENER DIODE 9Ohm ±5% 15V 1μA @ 11.4V -65°C~150°C 500mW 2 Terminations DO-214AC, SMA

Case Package:SOT-23

Datasheet:SMAZ5929B-M3/61 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	DO-214AC, SMA
Number of Pins	2
Diode Element Material	SILICON
Operating Temperature	-65°C~150°C
Packaging	Tape & Reel (TR)
Published	2016
Tolerance	±5%
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
HTS Code	8541.10.00.50
Max Power Dissipation	500mW
Terminal Position	DUAL
Terminal Form	C BEND
Peak Reflow Temperature (Cel)	260
Time@Peak Reflow Temperature-Max (s)	30
Pin Count	2
Number of Elements	1
Polarity	UNIDIRECTIONAL
Impedance	9Ohm
Element Configuration	Single
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	1μA @ 11.4V
Voltage - Forward (Vf) (Max) @ If	1.5V @ 200mA
Max Reverse Leakage Current	1μA
Impedance-Max	9Ohm
Reference Voltage	15V
Zener Voltage	15V
Voltage Tol-Max	4.98%
Voltage Tolerance	5%
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

SMAZ5929B-M3/61 Product Details

SMAZ5929B-M3/61 Overview

It is necessary to supply this electrical device with a reverse leakage current of 1μA @ 11.4V.A voltage of 4.98% indicates the maximum voltage (Tol) that can be supplied.Reverse leakage current reaches a maximum of 1μA.For the device to operate, the maximum forward voltage (Vf) 1.5V @ 200mA must be supplied.
